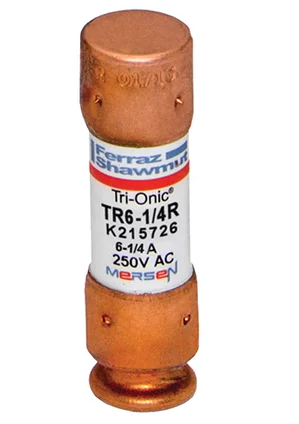

Cutler Hammer TR6-1/4R - TR Class RK5 Fuse 6A 250V (200kA AIC)

The Cutler Hammer TR6-1/4R is a Class RK5 low-voltage time-delay fuse from the Tri-Onic family, engineered to provide reliable circuit protection against both overloads and short-circuits. It features a 6A current rating and a 250V AC voltage rating, with a high 200kA interrupting capacity at its rated voltage. The fuse is constructed as a single-barrel unit with a compact 0.56-inch diameter and a lightweight design of 0.05 lb. This fuse complies with industry standards for RK5 classification, ensuring consistent performance in demanding industrial environments. It is typically applied in motor branch circuits, transformers, and other equipment where a time-delay characteristic is required to prevent nuisance tripping from harmless temporary inrush currents.

Key Features & Specifications

• Type: Tri-Onic, Time-Delay, Class RK5, Low-Voltage Fuse
• Voltage Rating: 250V AC
• Current Rating: 6A
• Dimensions: 0.56" Diameter
• Standards: Class RK5
• Applications: Motor branch circuits, transformers
• AIC rating: 200kA @ 250V AC
• Barrels: 1
• Class Rating: RK5
• Diameter: 0.56 inches
• Weight: 0.05 lb

Product Identification

• UPC: 782001747763
• GTIN: 00782001747763
