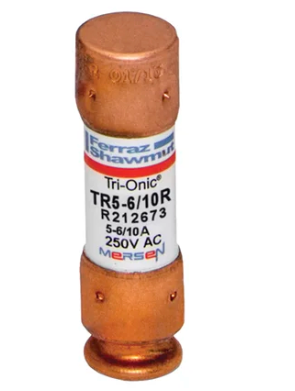

Eaton TR5-6/10R - TR Fuse 5A (RK5 Class 250V 200kA AIC)

Eaton TR5-6/10R is a low voltage fuse designed for circuit protection in industrial applications. This Tri-Onic time-delay fuse provides reliable overload and short-circuit protection with a 5A current rating and 250V voltage rating. The single-barrel construction features a 0.56-inch diameter and RK5 class rating, offering high interrupting capacity up to 200kA at 250V. It complies with industry standards for time-delay fuses and is suitable for motor branch circuits, transformers, and other equipment requiring coordinated protection. Typical applications include industrial control panels, motor starter circuits, and power distribution systems where selective coordination and time-delay characteristics are essential.

Key Features & Specifications

• Type: TR time-delay fuse, single barrel construction
• Voltage Rating: 250V AC
• Current Rating: 5A
• Dimensions: 0.56-inch diameter
• Standards: RK5 class rating
• Applications: Motor circuits, transformers, industrial control panels
• AIC rating: 200kA@250V
• Barrels: 1
• Class Rating: RK5
• Diameter: 0.56 inches
• Family: Tri-Onic
• Weight: 0.05 lb
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 782001747749
• GTIN: 00782001747749
