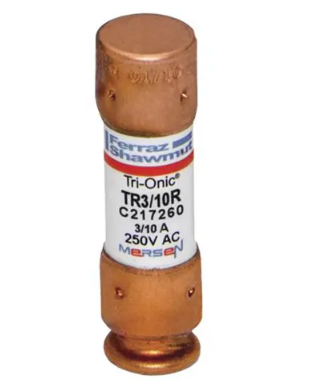

Cutler Hammer TR3/10R - TR Series Fuse 3A (RK5 Class, 200kA AIC)

The Cutler Hammer TR3/10R is a Tri-Onic time-delay, current-limiting fuse designed to provide reliable branch circuit and feeder protection for motor circuits and transformers. It features a 3A current rating and a 250V AC voltage rating, with a high 200kA interrupting capacity at 250V to safely clear severe short circuits. The fuse is constructed as a single-barrel unit with a 0.56-inch diameter and is built to the RK5 classification, offering a dual-element design that provides both overload and short-circuit protection. This fuse complies with industry standards for low-voltage protection devices and is typically applied in industrial control panels, motor starter circuits, and transformer protection where sustained overloads and high fault currents are present.

Key Features & Specifications

• Type: Tri-Onic, Time-Delay, Current-Limiting, Dual-Element, RK5 Class
• Voltage Rating: 250V AC
• Current Rating: 3A
• Dimensions: 0.56" Diameter
• Standards: UL Listed, CSA Certified
• Applications: Motor Circuit Protection, Transformer Protection, Industrial Control Panels
• AIC rating: 200kA @ 250V AC
• Class Rating: RK5
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 78200174753
• GTIN: 00782001747534
