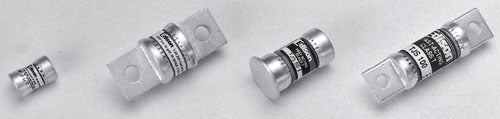

Edison Fuses TJS80 - Low Voltage Fuse 80A (600V AC, 200kA Interrupting)

Edison Fuses TJS80 is a low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a current capacity of 80A, housed in a compact, durable ceramic body with tin-plated copper end caps for reliable conductivity. The fuse meets UL/CSA standards for safety and performance in demanding environments. Typical applications include motor protection, transformer circuits, and power distribution panels where high interrupting capacity is required.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse with ceramic body and tin-plated terminals
• Voltage Rating: 600V AC
• Current Rating: 80A
• Dimensions: 2.25" x 0.56" (57.15mm x 14.22mm)
• Standards: UL/CSA certified
• Applications: Motor circuits, transformers, industrial power distribution
• Weight: 0.11 lb
• Fuse Class: J
• Interrupting Rating: 200kA

Product Identification

• UPC: 78263480722
• GTIN: 00782634807223
