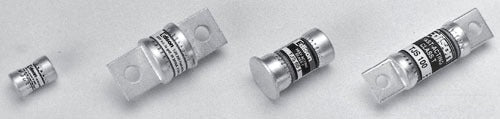

Cutler Hammer TJN500 - Low Voltage Fuse 500V/600A (UL 248-12 Certified)

Cutler Hammer TJN500 is a low-voltage current-limiting fuse designed for short-circuit protection in industrial electrical systems. It features a 500V AC voltage rating and 600A current capacity, with a compact cylindrical design constructed from durable ceramic housing and copper alloy elements. The fuse meets UL 248-12 standards for branch circuit protection and is commonly used in motor control centers, switchgear, and power distribution panels.

Key Features & Specifications

• Type: Current-limiting fuse with ceramic body and silver-sand filler
• Voltage Rating: 500V AC
• Current Rating: 600A
• Dimensions: 3.5" x 2.25" (88.9mm x 57.2mm)
• Standards: UL 248-12, CSA certified
• Applications: Motor protection, transformer circuits, industrial power distribution
• Class Rating: J
• Interrupting Rating: 200kA
• Mounting: Bolt-on terminal connection
• Operating Temperature: -40°C to 75°C

Product Identification

• UPC: 78263480657
• GTIN: 00782634806578
