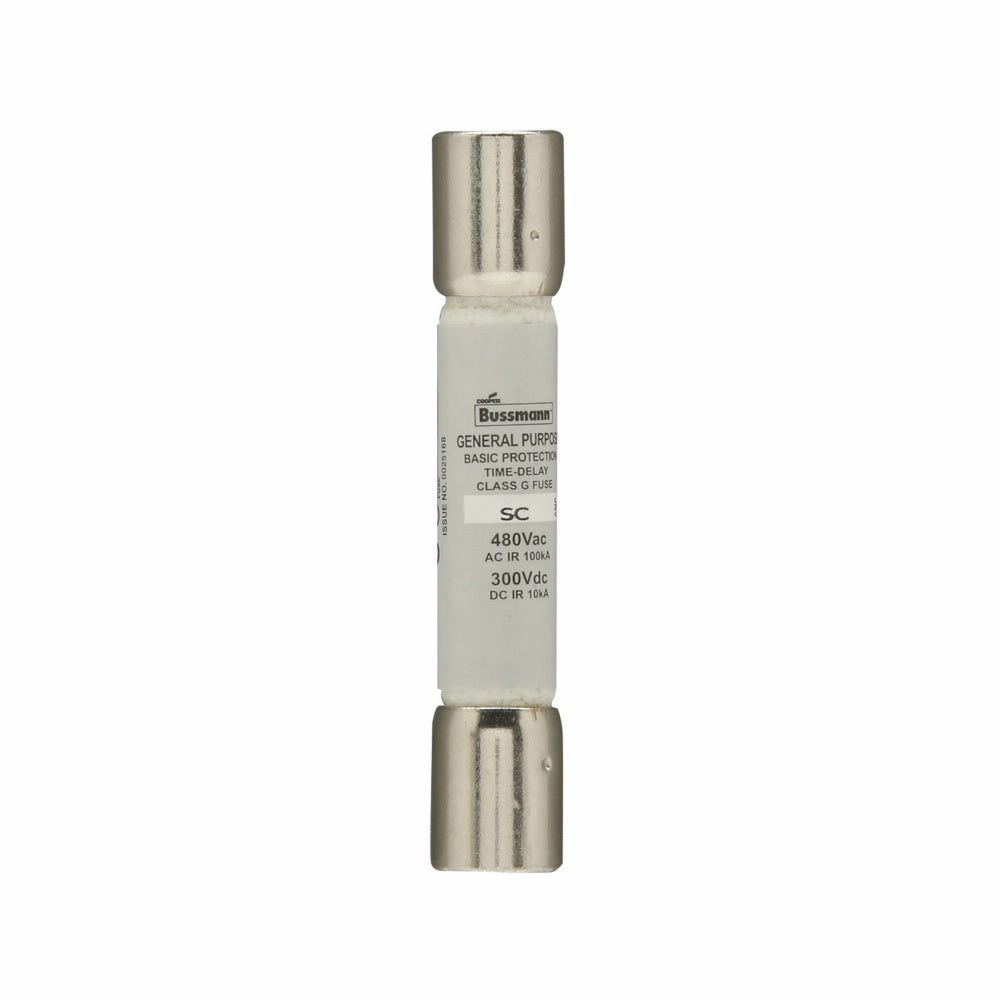

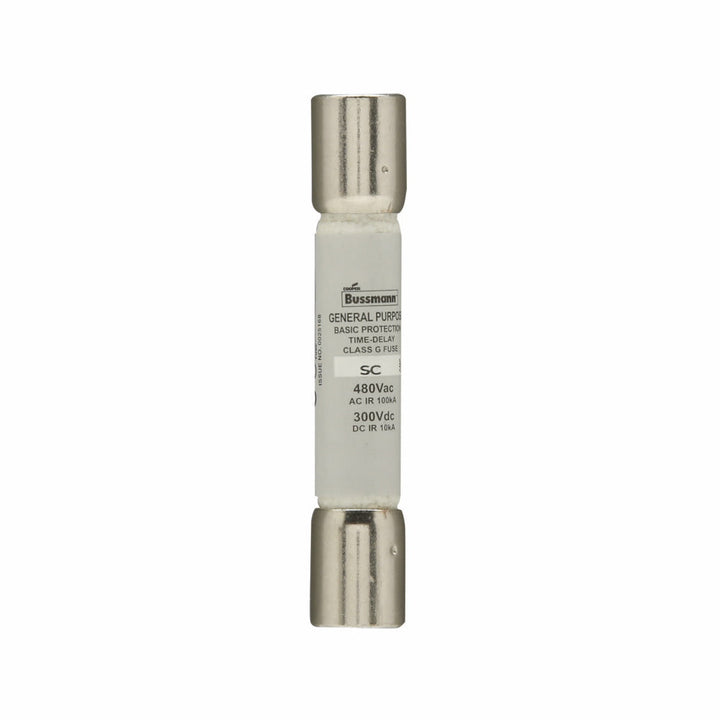

Bussmann SC-60 - Class G Fuse 60A (100kA AIC @ 480V)
Regular price
$13.18
$13.18
Regular price
$678.90
$678.90
Sale price
$13.18
$13.18
Save $665.72
/
- In stock, ready to ship
- Backordered, shipping soon
Bussmann SC-60 is a low voltage current-limiting fuse designed for comprehensive circuit protection in industrial electrical systems. It features a 60A current rating and 480V voltage rating with a high 100kA interrupting capacity at rated voltage for reliable fault protection. The fuse construction includes a single-barrel design with 0.41-inch diameter and 2-1/4 inch length, weighing 1.35 lb for compact installation. It complies with UL 248-5, CSA Guide 1422-01, and CE standards, meeting Class G requirements for general purpose applications. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where coordinated protection is essential.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: SC Series low voltage current-limiting fuse, single barrel design
- Voltage Rating: 480V AC
- Current Rating: 60A
- Dimensions: 2-1/4 inch length, 0.41 inch diameter
- Standards: UL 248-5 Guide JDDZ, CSA Guide 1422-01, CE certified
- Applications: Industrial motor circuits, feeder protection, control panels
- AIC rating: 100,000A at 480V
- Class Rating: G
- Barrels: 1
- Weight: 1.35 lb
- Family: SC Series
- Country of Origin: China
Product Identification
- UPC: 051712250603
- GTIN: 00051712250603
