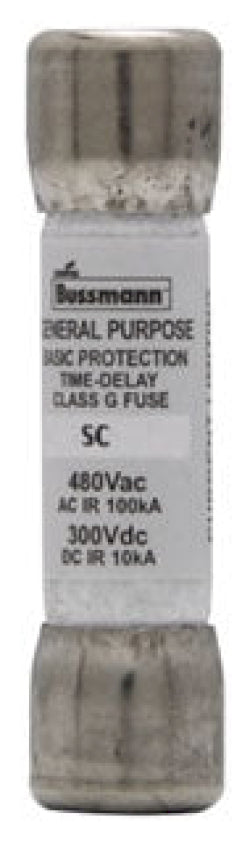

Bussmann SC-30 - Class G Fuse 30A 480V (100kA AIC Rating)

Bussmann SC-30 is a Class G low-voltage current-limiting fuse designed for branch circuit protection in industrial electrical systems. It features a 30A current rating and 480V AC voltage rating with a 100kA interrupting capacity, providing reliable short-circuit protection. The fuse construction includes a single-barrel design with 0.41-inch diameter and 1-5/8-inch length, weighing 1 lb for compact panel mounting. It complies with UL 248-5, CSA Guide 1422-01, and CE standards for safety and performance verification. Typical applications include motor branch circuits, feeder circuits, and industrial control panels requiring Class G protection characteristics.

Key Features & Specifications

• Type: SC Series Class G current-limiting fuse, single barrel
• Voltage Rating: 480V AC
• Current Rating: 30A
• Dimensions: 1-5/8 inch length, 0.41 inch diameter
• Standards: UL 248-5 Guide JDDZ, CSA Guide 1422-01, CE
• Applications: Motor branch circuits, feeder circuits, industrial control panels
• AIC rating: 100kA@480V
• Class Rating: G
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ

Product Identification

• UPC: 051712250306
• GTIN: 00051712250306
