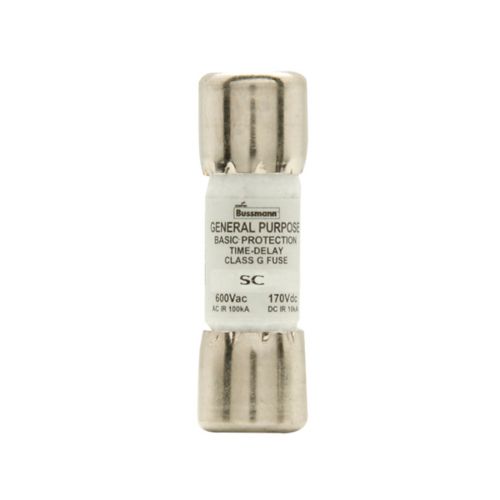

Cooper Bussmann SC-2-1/2 - Class G Fuse 600V/2A (100kA AIC)

Cooper Bussmann SC-2-1/2 is a Class G low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 2A current rating with a compact 1.31" x 0.41" x 0.41" (LxWxH) ceramic body construction. The fuse meets industry standards with a 100kA interrupting capacity at 600V and UL/CSA certifications. Typical applications include motor control centers, transformers, and power distribution equipment requiring reliable overcurrent protection.

Key Features & Specifications

• Type: SC Series Class G time-delay fuse with ceramic body
• Voltage Rating: 600V AC/DC
• Current Rating: 2A
• Dimensions: 1.31" L x 0.41" W x 0.41" H (33.27mm x 10.41mm x 10.41mm)
• Standards: UL/CSA listed
• Applications: Motor protection, transformers, power distribution
• AIC rating: 100kA@600V
• Class Rating: G
• Barrels: 1
• Diameter: 0.41" (10.41mm)
• Weight: 1 lb

Product Identification

• UPC: 005171218987
• GTIN: 00051712189873
