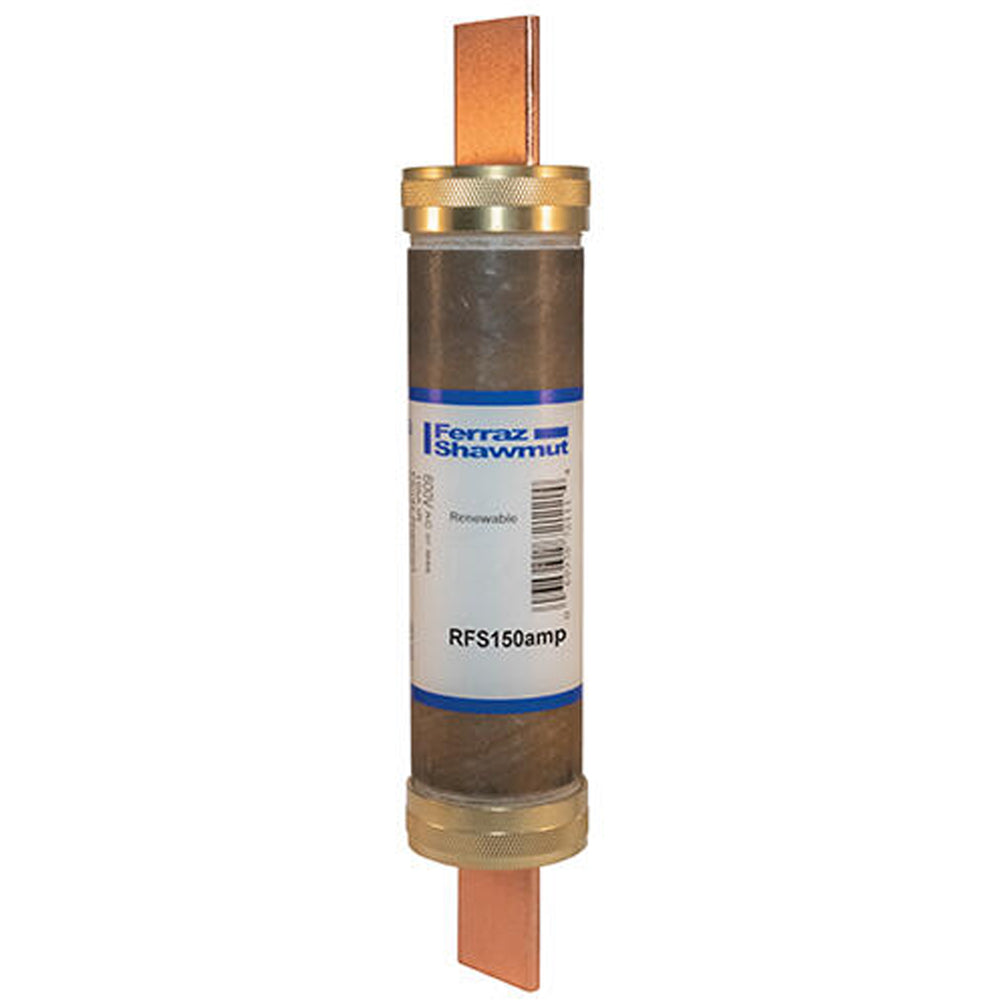

Cutler Hammer RFS150 - Class H Fuse 150A 600V (10kA AIC Rating)

Cutler Hammer RFS150 is a Class H low-voltage fuse designed for circuit protection in industrial power distribution systems. It features a 150A current rating and 600V AC voltage rating with a 10kA interrupting capacity at rated voltage. The single-barrel construction measures 1.81 inches in diameter and weighs 1 lb, providing robust physical characteristics for demanding environments. This fuse complies with industry standards for Class H fuse applications, ensuring reliable performance in motor control centers, industrial panels, and power distribution equipment where high-interrupting capacity protection is required.

Key Features & Specifications

• Type: Class H low-voltage fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 150A
• Dimensions: 1.81 inches diameter
• Standards: Class H fuse standards
• Applications: Industrial power distribution, motor control centers, panelboards
• AIC rating: 10kA@600V
• Class Rating: H
• Barrels: 1
• Weight: 1 lb

Product Identification

• UPC: 06893872115
• GTIN: 00068938721152
