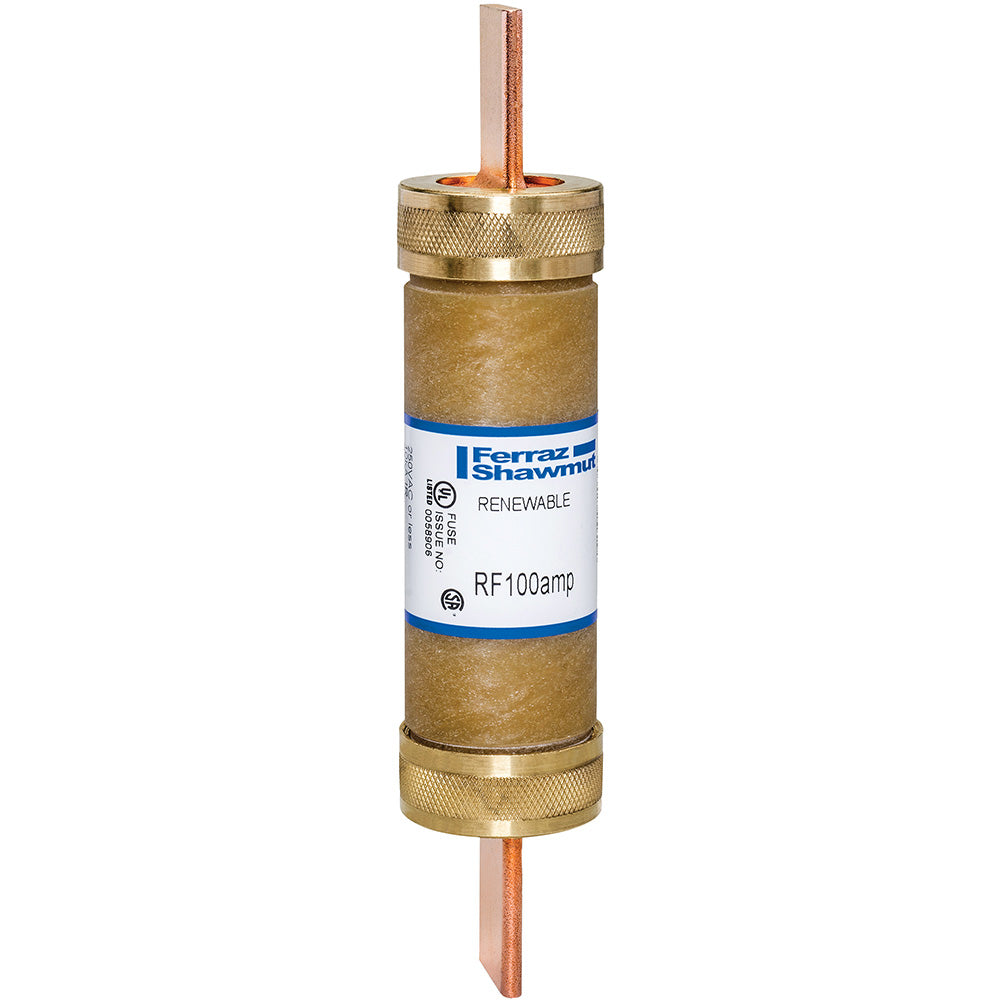

Ferraz Shawmut RF100 - Class H Fuse 100A@250VAC (10kA AIC Rating)

Ferraz Shawmut RF100 is a Class H low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 250V AC voltage rating and 100A current rating with a compact cylindrical design measuring 5.88 inches in length and 1.06 inches in diameter. The UL and CSA certified fuse offers 10kA interrupting capacity at 250V AC, constructed with a single-barrel configuration for reliable performance in motor control centers, switchgear, and power distribution applications.

Key Features & Specifications

• Type: RF series Class H low-voltage fuse, single-barrel construction
• Voltage Rating: 250V AC
• Current Rating: 100A
• Dimensions: 5.88 in length x 1.06 in diameter
• Weight: 1.65 lb
• Standards: UL Certified, CSA Certified
• Applications: Motor control centers, switchgear, power distribution
• AIC rating: 10kA@250VAC
• Class Rating: H
• Barrels: 1

Product Identification

• UPC: 68938720353
• GTIN: 00068938720353
