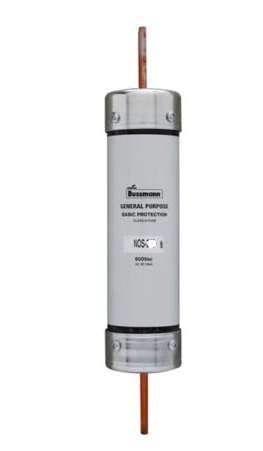

Bussmann NOS-110 - Class H Renewable Fuse 110A 600V (10kA AIC Rating)

Bussmann NOS-110 is a Class H low-voltage fuse designed for overcurrent protection in industrial power distribution systems. It features a 110A current rating and 600V voltage rating with an interrupting capacity of 10kA at 600VAC. The single-barrel construction measures 1.34 inches in diameter with a 9-5/8 inch length and complies with UL 248-6 standards for renewable fuses. This fuse meets multiple certifications including UL Listed, CSA Certified, and CE marking requirements. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where renewable fuse protection is specified.

Key Features & Specifications

• Type: Class H renewable fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 110A
• Dimensions: 9-5/8" length, 1.34" diameter
• Standards: UL 248-6, CSA Certified Class 1421-01, CE marked
• Applications: Industrial power distribution, motor circuits, feeder protection
• AIC rating: 10kA@600V
• Class Rating: H
• Barrels: 1
• Certification: UL Listed (File E4273), CSA Certified (File 53787), CE, Guide JDDZ
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712311106
