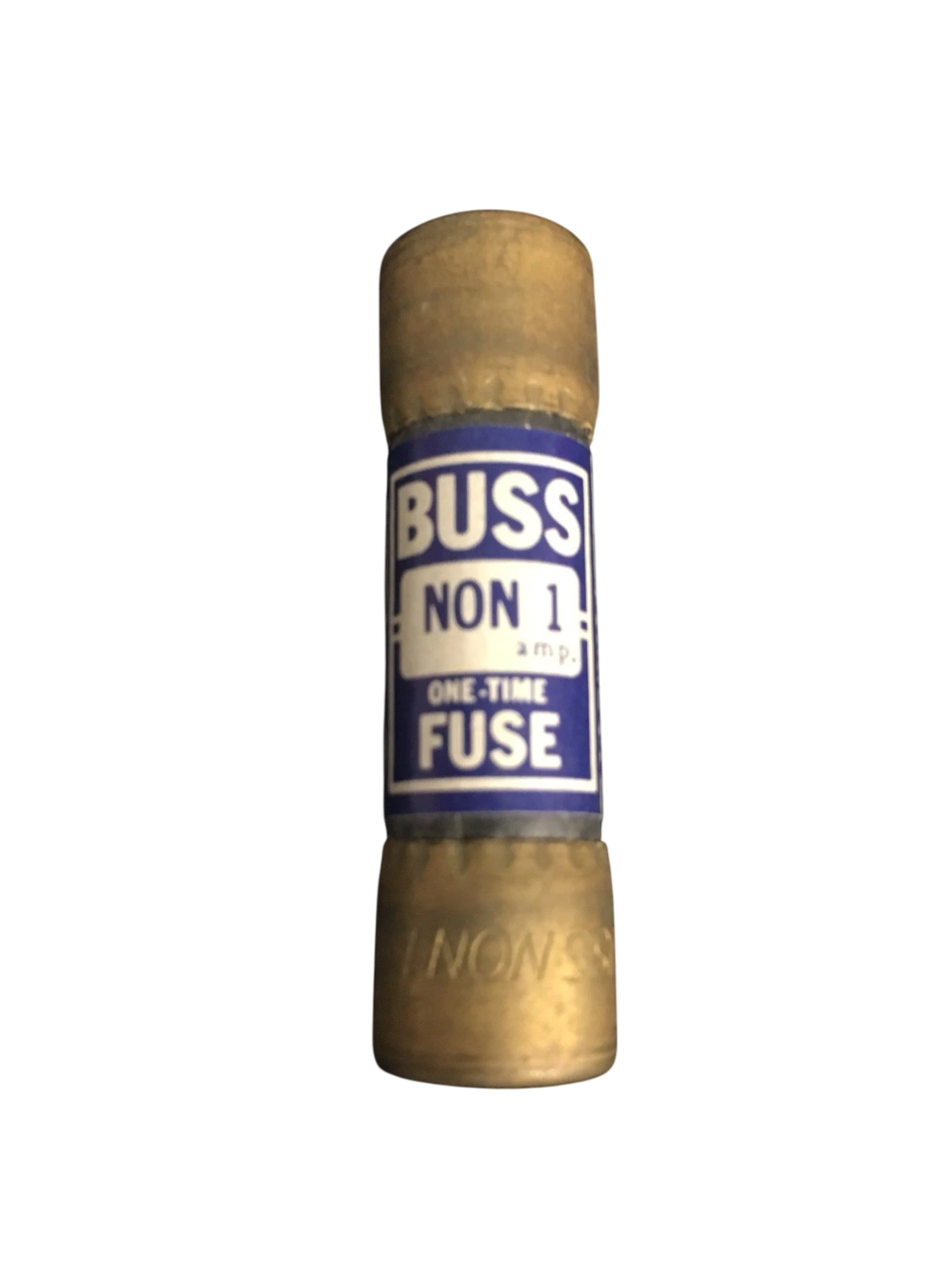

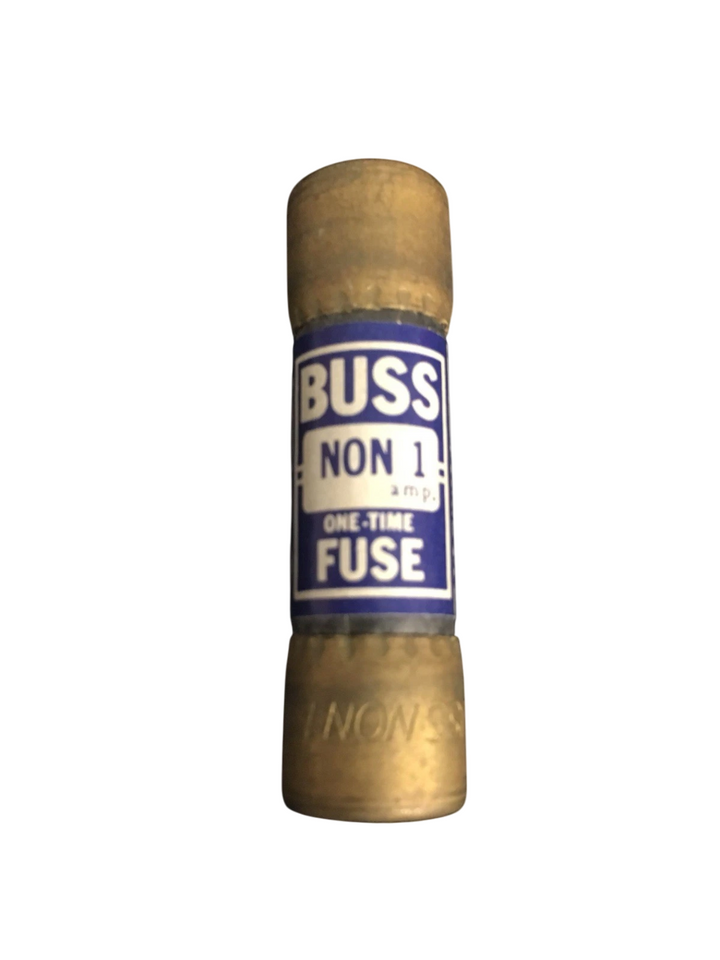

Cooper Bussmann NON-1/8 - Low-Voltage Fuse 1A (50kA AIC @250V)

Cooper Bussmann NON-1/8 is a low-voltage fuse designed for circuit protection in industrial electrical systems, featuring a 1A current rating and 250V voltage rating with a 50kA interrupting capacity. The fuse is constructed with a single-barrel design, measuring 2 inches in length and 0.56 inches in diameter, and meets K5 class rating standards for reliable performance. It complies with multiple certifications including UL, CSA, and CE, adhering to STD 248-9 and Guide JDDZ specifications. This fuse is commonly used in control panels, motor circuits, and power distribution applications requiring precise overcurrent protection.

Key Features & Specifications

• Type: NON-series low-voltage fuse, single-barrel construction
• Voltage Rating: 250V AC/DC
• Current Rating: 1A
• Dimensions: 2 in length, 0.56 in diameter
• Weight: 1.35 lb
• Class Rating: K5
• AIC Rating: 50kA@250V
• Certification: UL Listed, CSA Certified (Class 1421-01), CE, STD 248-9
• Applications: Industrial control circuits, motor protection, power distribution

Product Identification

• UPC: 05171230000
• GTIN: 00051712300001
