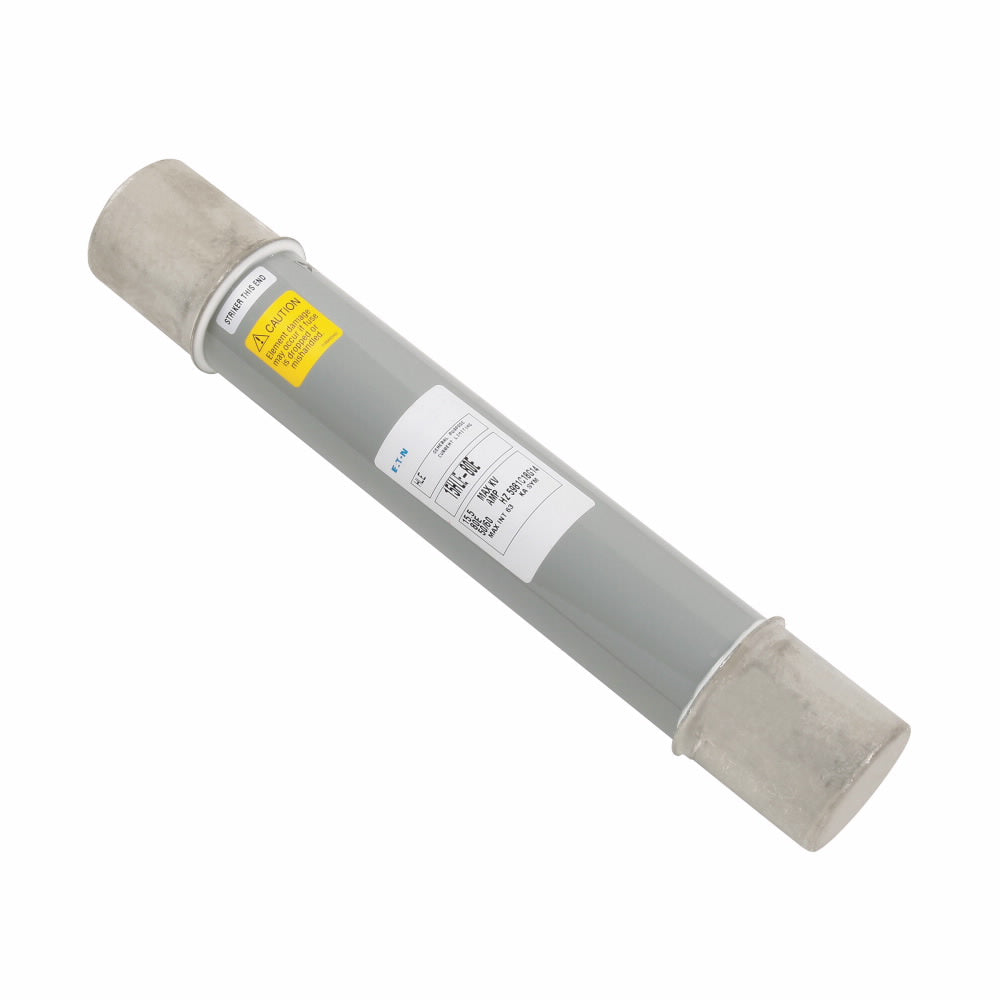

Bussmann MV155F2DCX175E - Medium Voltage Fuse 175A @ 15.5kV (ANSI Class E Rated)
Regular price
$3,486.12
$3,486.12
Regular price
$7,135.37
$7,135.37
Sale price
$3,486.12
$3,486.12
Save $3,649.25
/
- In stock, ready to ship
- Backordered, shipping soon
Bussmann MV155F2DCX175E is a medium voltage fuse designed for high-voltage circuit protection in industrial power systems. This Class E rated fuse operates at 15.5kV with a 175A current rating and features a dual-barrel construction measuring 23 inches in height with 18-inch clip center spacing. The fuse complies with ANSI standards and provides 50kA interrupting capacity at 15.5kV for reliable fault protection. Typical applications include motor control centers, transformers, and switchgear in industrial facilities requiring robust medium voltage protection.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Medium Voltage Fuse, Dual-Barrel Construction
- Voltage Rating: 15,500V AC
- Current Rating: 175A
- Dimensions: 0.75" × 23" × 0.75" (W×H×D)
- Standards: ANSI Certified
- Applications: Industrial Power Systems, Motor Control Centers, Switchgear
- AIC rating: [email protected]
- Class Rating: E
- Barrels: 2
- Clip Center: 18 inches
- Diameter: 2 inches
- Weight: 24 lb
- Family: MV155
- Country of Origin: Mexico
Product Identification
- UPC: 051712552882
- GTIN: 00051712552882
