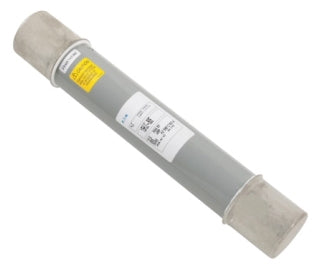

Eaton Bussmann MV155F2DBX200E - Medium Voltage Fuse 200A 15.5kV (ANSI Class E)
Regular price
$5,326.87
$5,326.87
Regular price
$9,998.56
$9,998.56
Sale price
$5,326.87
$5,326.87
Save $4,671.69
/
- Low stock - 1 item left
- Backordered, shipping soon
Eaton Bussmann MV155F2DBX200E is a medium voltage current-limiting fuse designed for protecting electrical distribution systems and equipment from overcurrent conditions. This Class E rated fuse operates at 15.5kV with a 200A current rating and features a dual-barrel construction with 15-inch clip center spacing for secure mounting. Manufactured to ANSI standards, it provides 50kA interrupting capacity at 15.5kV for reliable protection in demanding industrial environments. The fuse is commonly deployed in medium voltage switchgear, motor control centers, and transformer protection applications where robust overcurrent protection is required.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Medium Voltage Current-Limiting Fuse, Dual-Barrel Construction
- Voltage Rating: 15,500V AC
- Current Rating: 200A
- Dimensions: 2-inch diameter
- Standards: ANSI Certified
- Applications: Medium Voltage Switchgear, Motor Control Centers, Transformer Protection
- AIC rating: [email protected]
- Class Rating: E
- Barrels: 2
- Clip Center: 15 inches
- Weight: 20 lb
Product Identification
- UPC: 05171226912
- GTIN: 00051712269124
