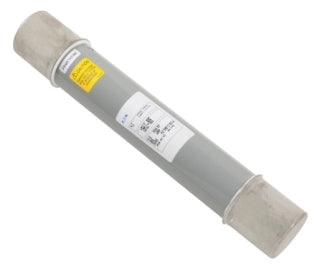

Eaton Bussmann MV155F2DBX150E - Medium Voltage Fuse 150A (15.5kV, 50kA AIC)
Regular price
$0.00
$0.00
Regular price
$4,374.89
$4,374.89
Sale price
$0.00
$0.00
Save $4,374.89
/
- In stock, ready to ship
- Backordered, shipping soon
The Bussmann MV155F2DBX150E is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 15.5kV voltage rating and 150A current rating with a 50kA interrupting capacity at 15.5kV for reliable fault protection. The fuse construction utilizes a dual-barrel design with 2-inch diameter and 15-inch clip center spacing, weighing 20 pounds for robust performance. Manufactured to ANSI standards with Class E rating, this fuse meets rigorous industry requirements for medium voltage applications. Typical applications include motor protection, transformer protection, and feeder circuit protection in industrial power distribution systems.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Medium Voltage Current-Limiting Fuse, Dual-Barrel Design
- Voltage Rating: 15,500V AC
- Current Rating: 150A
- Dimensions: 2-inch Diameter, 15-inch Clip Center
- Standards: ANSI Certified, Class E Rated
- Applications: Industrial Power Systems, Motor Protection, Transformer Protection
- AIC Rating: 50kA @ 15.5kV
- Barrels: 2
- Weight: 20 lb
- Family: MV155
- Country of Origin: Mexico
Product Identification
- UPC: 05171226910
- GTIN: 00051712269100
