Cooper Bussmann MV155F1DBX25E - Medium Voltage Fuse 25A @ 15.5kV (50kA AIC)
Regular price
$0.00
$0.00
Regular price
$4,843.45
$4,843.45
Sale price
$0.00
$0.00
Save $4,843.45
/
- In stock, ready to ship
- Backordered, shipping soon

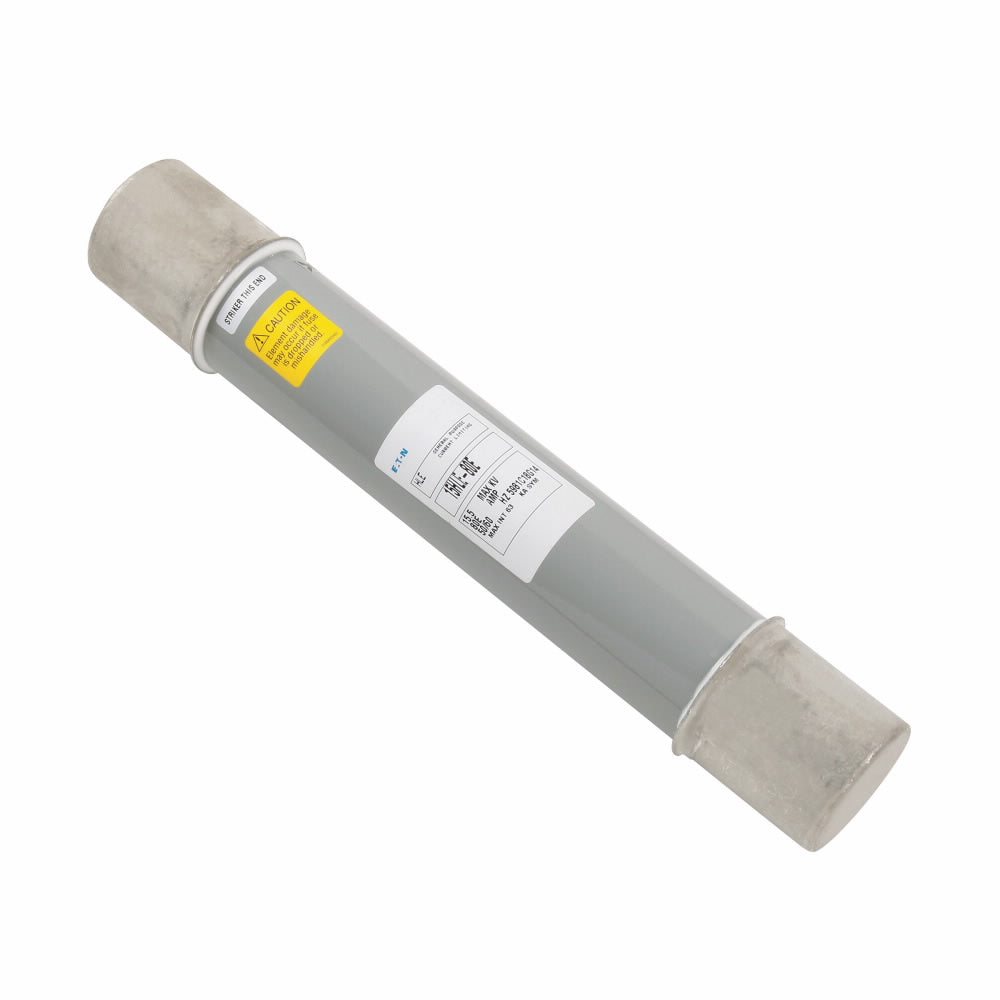

Cooper Bussmann MV155F1DBX25E is a medium voltage fuse designed for high-voltage circuit protection in industrial applications. This Class E fuse features a 15.5kV voltage rating and 25A current capacity, with a compact 0.75" × 23" × 0.75" (W×H×D) form factor constructed with durable materials for reliable operation. ANSI-certified with a 50kA interrupting capacity at 15.5kV, it meets stringent safety standards for medium voltage systems. The fuse is commonly used in power distribution, transformers, and motor protection circuits where robust overcurrent protection is required.
Key Features & Specifications
Key Features & Specifications
- Type: Medium voltage current-limiting fuse (Class E)
- Voltage Rating: 15,500V AC
- Current Rating: 25A
- Dimensions: 0.75" × 23" × 0.75" (W×H×D)
- Weight: 12 lb
- Diameter: 2"
- Barrels: 1
- Clip Center: 15"
- Certification: ANSI
- AIC Rating: 50kA @ 15.5kV
- Applications: Power distribution, transformers, motor circuits
- UPC: 051712269308
- GTIN: 00051712269308
