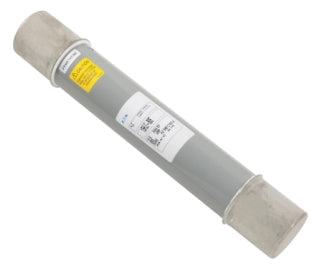

Bussmann MV055F1DAX80E - Medium Voltage Fuse 80A (5500V AC, 50kA AIC)

Bussmann MV055F1DAX80E is a medium voltage fuse designed for high-current circuit protection in industrial power systems. This Class E fuse features a 5500V AC voltage rating and 80A current rating, housed in a durable 15.86-inch long cylindrical body with 2-inch diameter and 12-inch clip center spacing. Constructed with ANSI-compliant design, it provides 50kA interrupting capacity at 5.5kV for reliable overcurrent protection in transformer feeders, motor circuits, and medium-voltage switchgear applications.

Key Features & Specifications

• Type: MV055 medium voltage fuse, single barrel design
• Voltage Rating: 5500V AC
• Current Rating: 80A
• Dimensions: 15.86" L x 3" W x 3" H (402.8mm x 76.2mm x 76.2mm)
• Standards: ANSI-certified
• Applications: Transformer/motor protection, switchgear
• Class Rating: E
• AIC rating: [email protected]
• Weight: 9 lb (4.08 kg)
• Diameter: 2" (50.8mm)
• Clip Center: 12" (304.8mm)
• Barrels: 1

Product Identification

• UPC: 05171226965
• GTIN: 00051712269650
