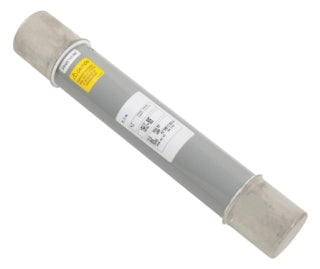

Eaton Bussmann MV055F1DAX200E - Medium Voltage Fuse 200A (Class E, 5500V)
Regular price
$4,515.23
$4,515.23
Regular price
$2,389.43
$2,389.43
Sale price
$4,515.23
$4,515.23
Save $-2,125.80
/
- In stock, ready to ship
- Backordered, shipping soon
Eaton Bussmann MV055F1DAX200E is a medium voltage current-limiting fuse designed for overcurrent protection in industrial power distribution systems. This Class E rated fuse operates at 5500V AC with a 200A current rating and provides 50kA interrupting capacity at 5.5kV for reliable fault protection. The single-barrel construction features a compact 3" x 3" cross-section with 15.86" length and 12" clip center spacing for standardized mounting. Manufactured to ANSI standards, this fuse delivers robust performance in demanding applications including motor control centers, transformers, and switchgear protection where medium voltage circuit interruption is critical.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Medium Voltage Current-Limiting Fuse, Class E Rating, Single Barrel Construction
- Voltage Rating: 5500V AC
- Current Rating: 200A
- Dimensions: 3" Length x 15.86" Height x 3" Width
- Standards: ANSI Certified
- Applications: Industrial Power Distribution, Motor Control Centers, Transformer Protection
- AIC rating: [email protected]
- Class Rating: E
- Barrels: 1
- Diameter: 2 inches
- Clip Center: 12 inches
- Weight: 9 lb
- Family: MV055
- Country of Origin: Mexico
Product Identification
- UPC: 05171255291
- GTIN: 00051712552912
Quote Request
