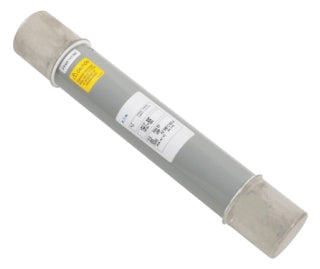

Bussmann MV055F1DAX125E - Medium Voltage Fuse 125A (Class E, 5500V, 50kA AIC)
Regular price
$4,842.35
$4,842.35
Regular price
$2,389.43
$2,389.43
Sale price
$4,842.35
$4,842.35
Save $-2,452.92
/
- In stock, ready to ship
- Backordered, shipping soon
Bussmann MV055F1DAX125E is a medium voltage current-limiting fuse designed for overcurrent protection in industrial power distribution systems. This Class E rated fuse operates at 5500V with a 125A current rating and features a 50kA interrupting capacity at 5.5kV for reliable fault protection. The single-barrel construction measures 3" × 15.86" × 3" with a 2" diameter and 12" clip center spacing, weighing 9 lb for robust installation. Manufactured to ANSI standards, this Eaton MV055 family component provides compliant protection for medium voltage motor circuits, transformers, and capacitor banks in demanding industrial environments.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Medium Voltage Current-Limiting Fuse, Class E, Single Barrel
- Voltage Rating: 5500V AC
- Current Rating: 125A
- Dimensions: 3" Length × 15.86" Height × 3" Width
- Standards: ANSI Certification
- Applications: Industrial Power Distribution, Motor Protection, Transformer Circuits
- AIC rating: [email protected]
- Class Rating: E
- Barrels: 1
- Diameter: 2 inches
- Clip Center: 12 inches
- Weight: 9 lb
- Family: MV055
- Country of Origin: Mexico
Product Identification
- UPC: 05171226967
- GTIN: 00051712269674
