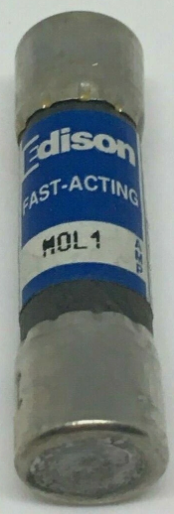

Edison Fuses MOL1 - Midget Fuse 1A@250V (35A AIC Rating)

Edison Fuses MOL1 is a midget-class low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 250V AC/DC voltage rating with a 1A current rating and 35A interrupting capacity at 250V, housed in a compact 1" x 0.406" x 0.406" (LxWxH) ceramic body with 0.41" diameter. This UL-recognized fuse meets industry standards for reliable overcurrent protection in control circuits, instrumentation, and small transformer applications.

Key Features & Specifications

• Type: Ceramic-bodied midget fuse with single barrel construction
• Voltage Rating: 250V AC/DC
• Current Rating: 1A
• Dimensions: 1" L x 0.406" W x 0.406" H (25.4mm x 10.3mm x 10.3mm)
• Standards: UL recognized
• Applications: Control circuits, instrumentation, small transformers
• Class Rating: Midget
• AIC rating: 35A@250V
• Barrels: 1
• Diameter: 0.41" (10.4mm)
• Weight: 1.001 lb (0.454 kg)

Product Identification

• UPC: 782634320012
• GTIN: 782634320012
