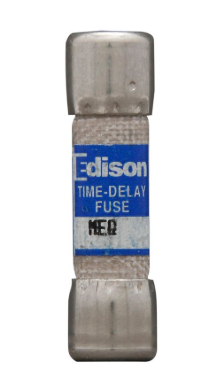

Edison Fuses MEQ5 - Midget Fuse 5A 500V (10kA Interrupt Rating)

Edison Fuses MEQ5 is a midget-class low-voltage fuse designed for circuit protection in industrial electrical systems. This 5A fuse features a 500V AC/DC voltage rating with a 10kA interrupting capacity at 500V, housed in a compact 1" x 0.406" x 0.406" (25.4mm x 10.3mm x 10.3mm) ceramic body weighing 1.001 lb. The MEQ Series fuse meets industry standards for midget fuses with its single-barrel construction and 0.41" (10.4mm) diameter, suitable for protecting control circuits, transformers, and small motors in panelboards and industrial equipment.

Key Features & Specifications

• Type: MEQ Series ceramic-body midget fuse
• Voltage Rating: 500V AC/DC
• Current Rating: 5A
• Dimensions: 1" L x 0.406" W x 0.406" H (25.4mm x 10.3mm x 10.3mm)
• Diameter: 0.41" (10.4mm)
• Weight: 1.001 lb
• Class Rating: Midget
• Barrels: 1
• AIC rating: 10kA@500V
• Standards: UL/CSA recognized
• Applications: Control circuits, transformers, small motor protection

Product Identification

• UPC: 782634786207
