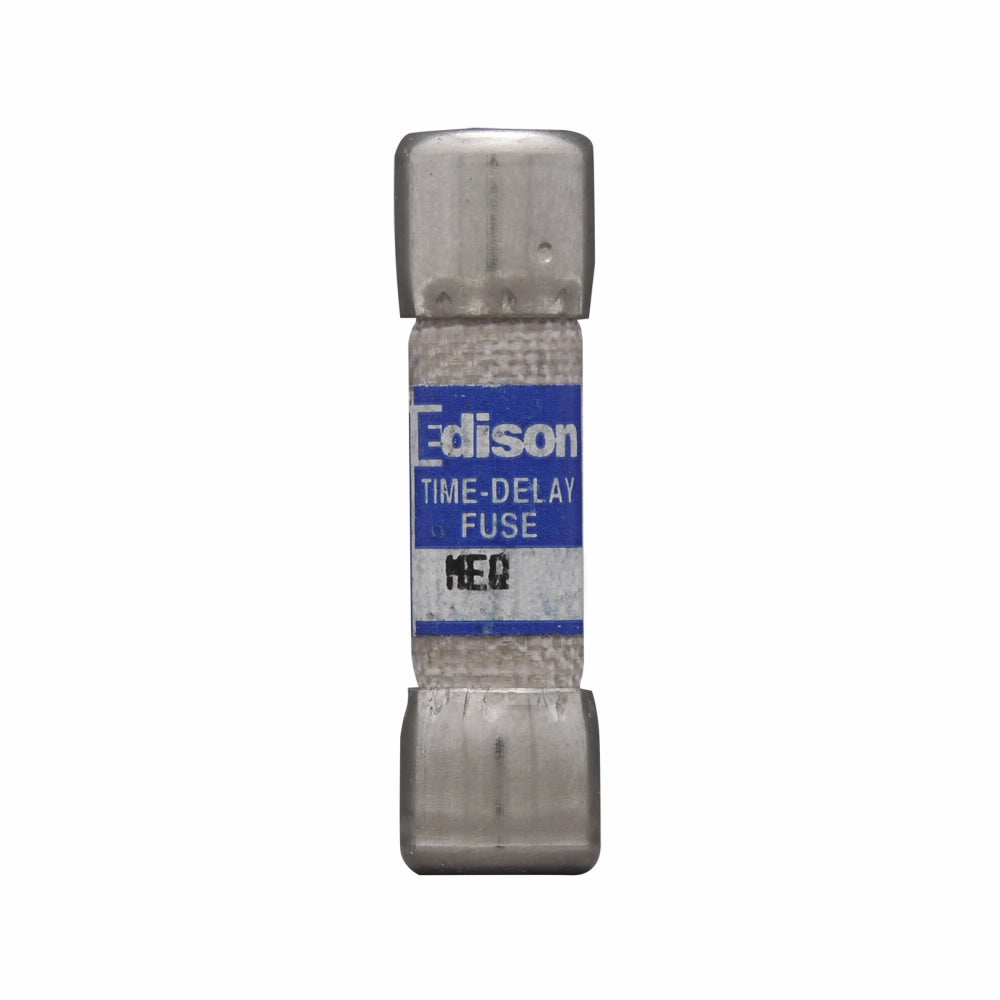

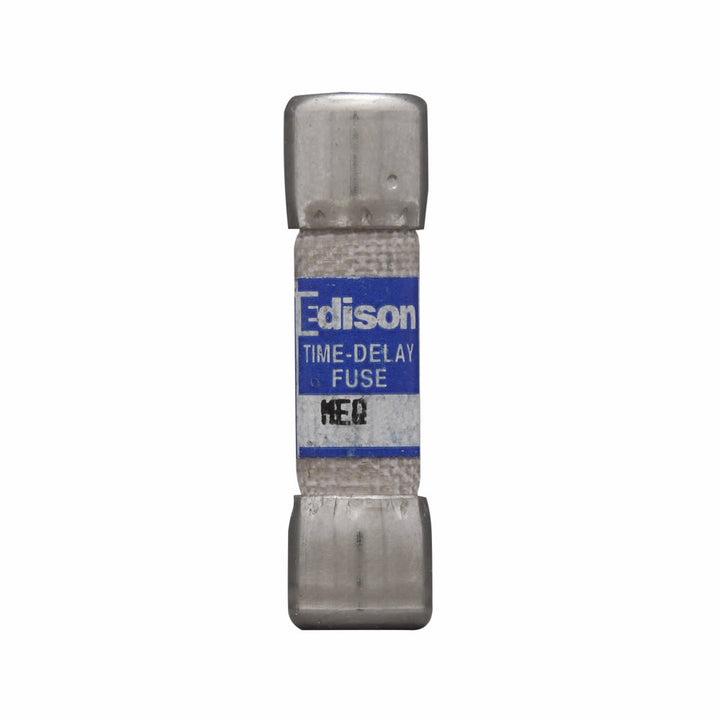

Edison Fuses MEQ25 - Midget Fuse 25A 500V (10kA Interrupt Rating)
Regular price
$23.77
$23.77
Regular price
$72.60
$72.60
Sale price
$23.77
$23.77
Save $48.83
/
- In stock, ready to ship
- Backordered, shipping soon
Edison Fuses MEQ25 is a midget fuse designed for low-voltage circuit protection in industrial applications. It features a 500V AC/DC voltage rating and 25A current rating, with a compact 1" x 0.406" x 0.406" (25.4mm x 10.3mm x 10.3mm) ceramic body construction. This MEQ series fuse meets industry standards with a 10kA interrupting capacity at 500V, providing reliable overcurrent protection for control circuits, transformers, and motor loads. Its single-barrel design with 0.41" (10.4mm) diameter terminals ensures secure installation in compatible fuse holders.
Key Features & Specifications
Key Features & Specifications
- Type: MEQ series ceramic midget fuse
- Voltage Rating: 500V AC/DC
- Current Rating: 25A
- Dimensions: 1" x 0.406" x 0.406" (LxWxH)
- Weight: 1.2 lb
- Diameter: 0.41" (10.4mm)
- Class Rating: Midget
- Barrels: 1
- AIC rating: 10kA@500V
- Standards: UL/CSA recognized
- Applications: Control circuits, transformers, motor protection
- UPC: 782634786658
- GTIN: 00782635000000
