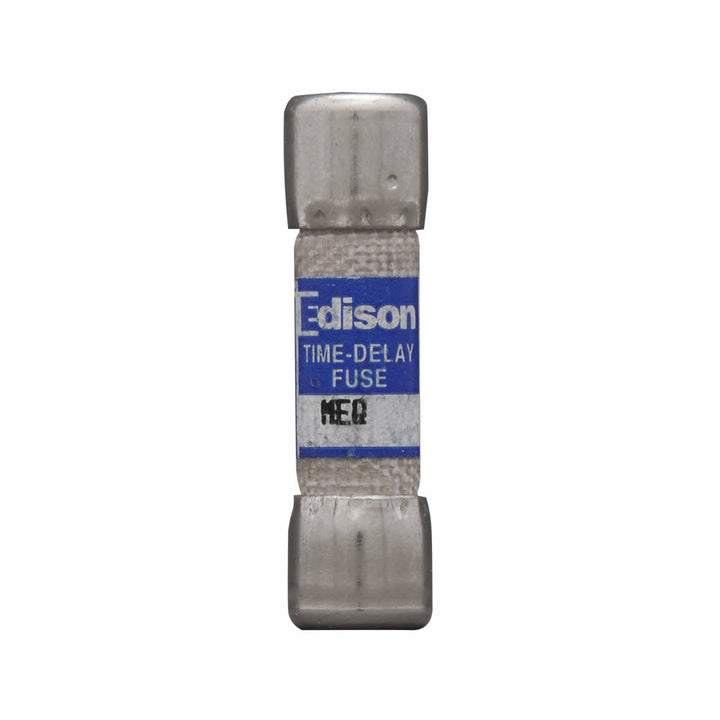

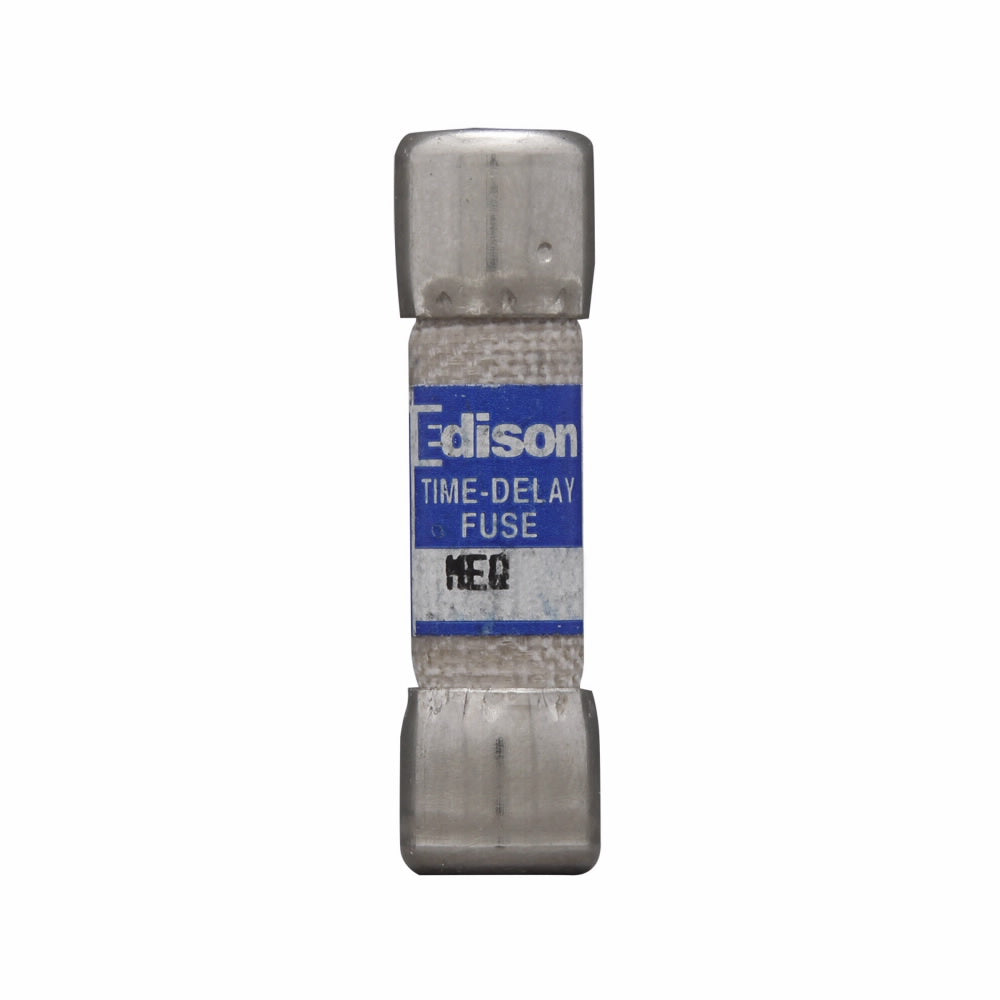

Edison Fuses MEQ20 - Midget Fuse 20A (10kA@500V Interrupt Rating)

Edison Fuses MEQ20 is a midget-class low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 500V AC/DC voltage rating and 20A current capacity with a 10kA interrupting rating at 500V for reliable overcurrent protection. The compact cylindrical design measures 1" x 0.406" x 0.406" (25.4mm x 10.3mm x 10.3mm) with 0.41" (10.4mm) diameter and 1.2 lb weight, constructed with durable single-barrel architecture. Compliant with industry standards for low-voltage fuses, it's commonly used in control panels, motor circuits, and power distribution equipment requiring space-efficient protection.

Key Features & Specifications

• Type: Midget-class low-voltage fuse, single-barrel construction
• Voltage Rating: 500V AC/DC
• Current Rating: 20A
• Dimensions: 1" L x 0.406" W x 0.406" H (25.4mm x 10.3mm x 10.3mm)
• Diameter: 0.41" (10.4mm)
• Weight: 1.2 lb
• AIC Rating: 10kA@500V
• Class Rating: Midget
• Barrels: 1
• Applications: Industrial control panels, motor protection circuits, power distribution systems

Product Identification

• UPC: 782634786351
• GTIN: 00782634786351
