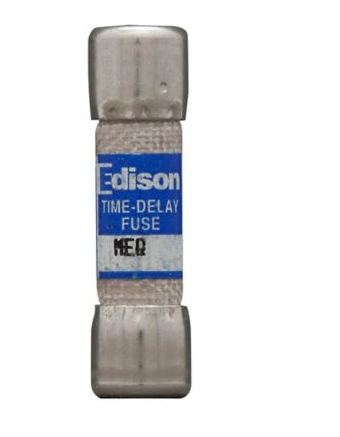

Bussmann MEQ2.5 - Midget Fuse 2.5A (10kA@500V Interrupting Rating)

Bussmann MEQ2.5 is a low-voltage midget fuse designed to provide reliable circuit protection in industrial applications. It features a 2.5A current rating and 500V voltage rating with an interrupting capacity of 10kA at 500V for effective short-circuit protection. The compact fuse measures 1 inch in length with a 0.41-inch diameter and features single-barrel construction for space-efficient installation. This Eaton-manufactured fuse meets industry standards for low-voltage protection and is commonly used in control circuits, instrumentation, and electronic equipment where precise overcurrent protection is required.

Key Features & Specifications

• Type: Low-voltage midget fuse, single-barrel construction
• Voltage Rating: 500V AC/DC
• Current Rating: 2.5A
• Dimensions: 1" L × 0.406" H × 0.406" W (25.4mm × 10.3mm × 10.3mm)
• Diameter: 0.41 inches (10.4mm)
• Weight: 1.001 lb
• Class Rating: Midget
• AIC Rating: 10kA @ 500V
• Barrels: 1
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 782634786269
