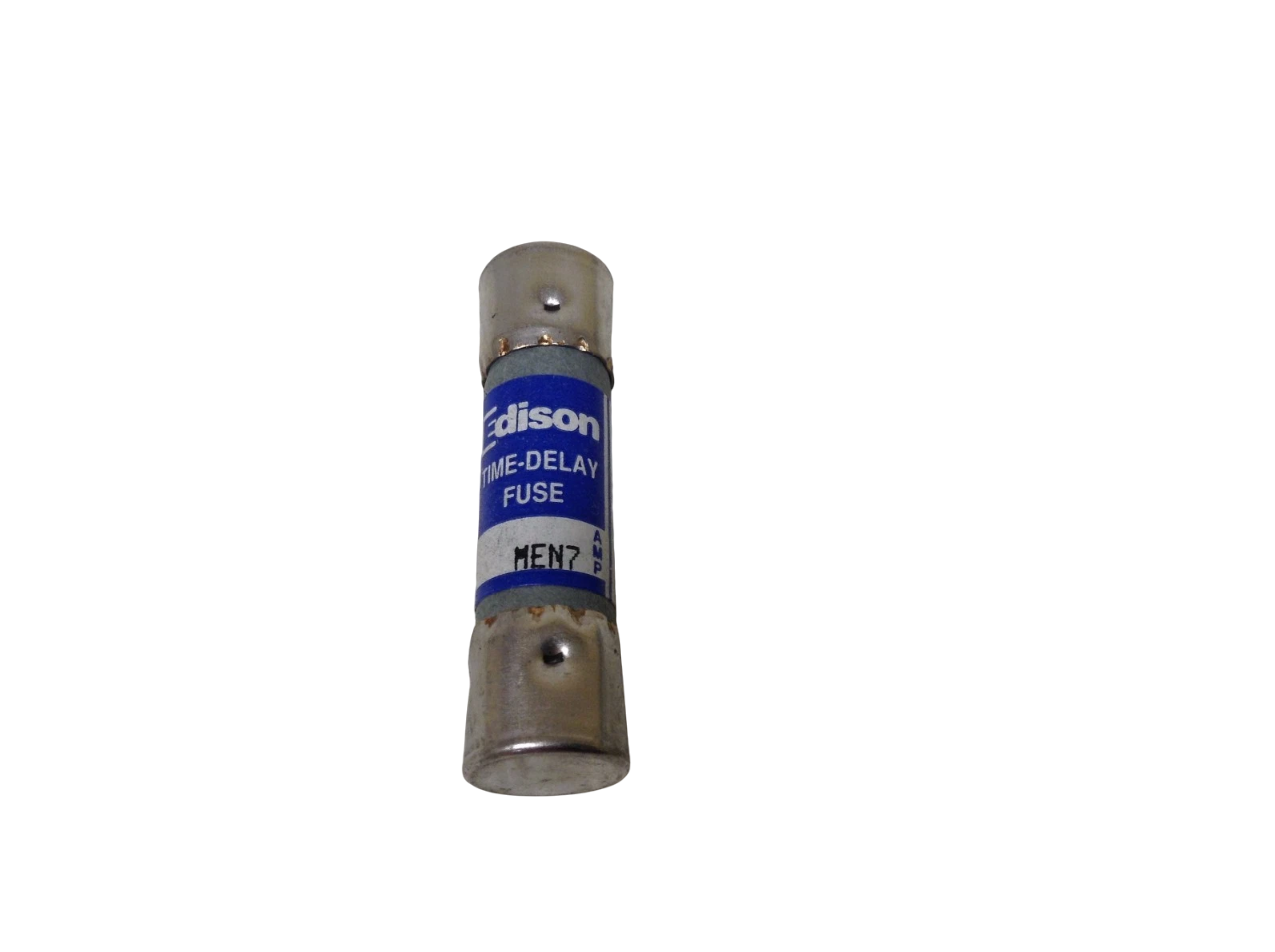

Edison Fuses MEN7 - Midget Fuse 7A 250V (10kA@125V Interrupt Rating)

Edison Fuses MEN7 is a midget-class low-voltage fuse designed for circuit protection in industrial and commercial applications. This 250V AC-rated fuse features a 7A current rating and 10kA interrupting capacity at 125V, housed in a compact 1" x 0.406" x 0.406" (25.4mm x 10.3mm x 10.3mm) ceramic body with 0.41" (10.4mm) diameter. Compliant with industry standards for midget fuses, the single-barrel MEN series fuse provides reliable overcurrent protection for control circuits, instrumentation, and small power distribution systems where space constraints exist.

Key Features & Specifications

• Type: Midget fast-acting ceramic fuse (MEN series)
• Voltage Rating: 250V AC
• Current Rating: 7A
• Dimensions: 1" L x 0.406" W x 0.406" H (25.4mm x 10.3mm x 10.3mm)
• Weight: 1.001 lb
• Diameter: 0.41" (10.4mm)
• Class Rating: Midget
• Barrels: 1
• AIC Rating: 10kA@125V
• Standards: Industrial fuse protection standards
• Applications: Control circuits, instrumentation, small power distribution

Product Identification

• UPC: 782634520702
