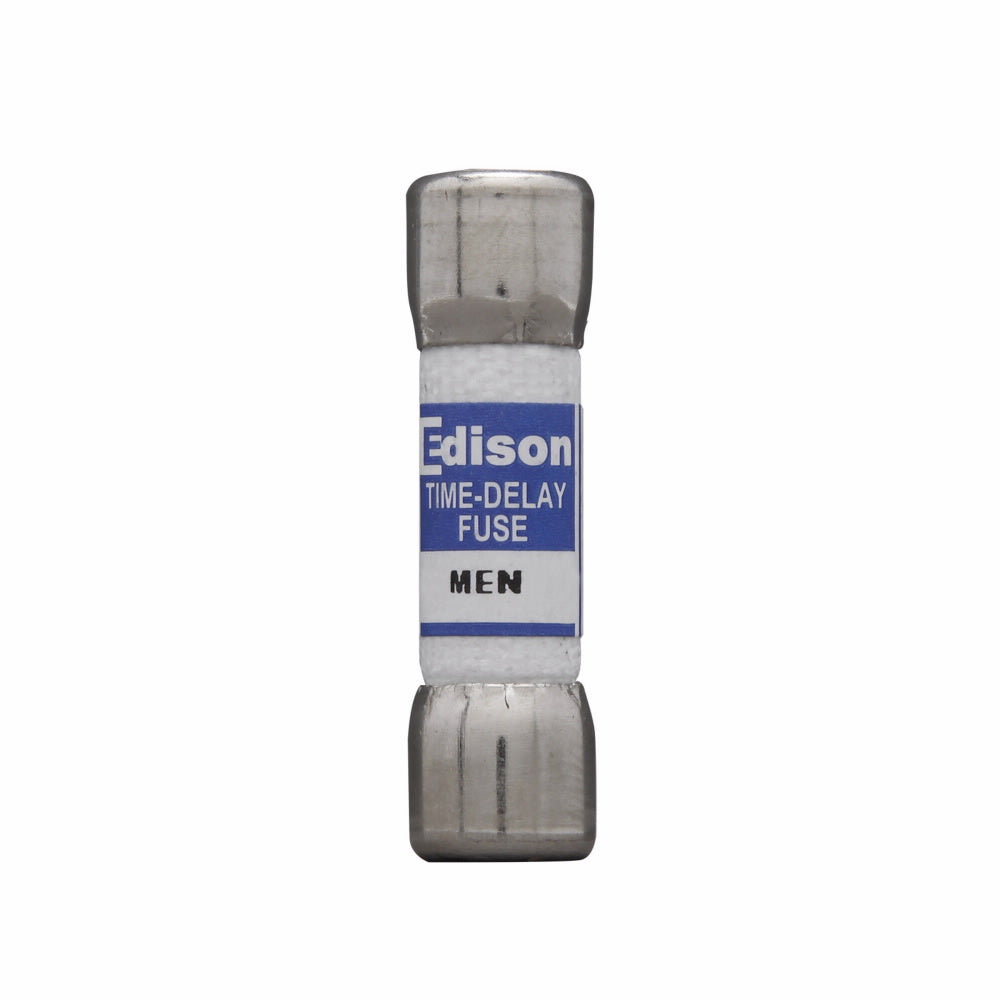

Edison Fuses MEN30 - Midget Fuse 30A (250V 10kA AIC)

Edison Fuses MEN30 is a midget low-voltage fuse designed for circuit protection in industrial and commercial applications. Rated for 250V AC/DC systems with a 30A current capacity, it features a compact cylindrical design (1" length x 0.406" diameter) with single-barrel construction and 10kA interrupting capacity at 125V. Compliant with industry standards for midget fuses, this 1.2 lb component provides reliable overcurrent protection for control circuits, transformers, and small motor applications where space constraints exist.

Key Features & Specifications

• Type: Midget low-voltage fuse, single-barrel construction
• Voltage Rating: 250V AC/DC
• Current Rating: 30A
• Dimensions: 1" L x 0.406" W x 0.406" H (25.4mm x 10.3mm x 10.3mm)
• Weight: 1.2 lb (0.54 kg)
• Diameter: 0.41" (10.4mm)
• AIC Rating: 10kA@125V
• Class Rating: Midget
• Standards: Industry-standard midget fuse compliance
• Applications: Control circuits, small transformers, compact motor protection

Product Identification

• UPC: 78263452300
• GTIN: 00782634523000
