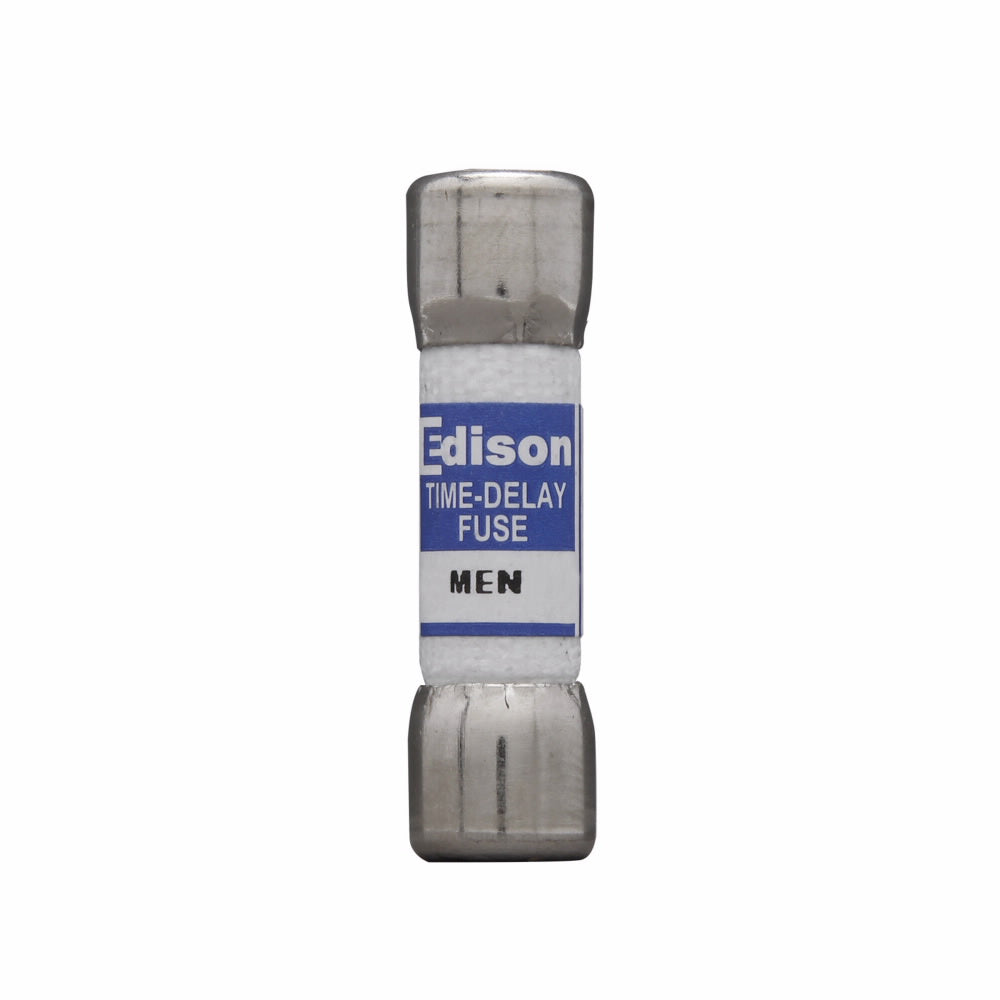

Edison Fuses MEN20 - Midget Fuse 20A (10kA@125V Interrupt Rating)

Edison Fuses MEN20 is a midget fuse designed for low-voltage circuit protection in industrial applications. This 250V-rated fuse handles 20A continuous current with a 10kA interrupting capacity at 125V, featuring a compact 1" x 0.406" x 0.406" (LxWxH) ceramic body with 0.41" diameter. Compliant with industry standards for midget fuses (Class Midget), it provides reliable overcurrent protection in control panels, machinery, and electrical distribution systems where space constraints exist.

Key Features & Specifications

• Type: MEN series ceramic-body midget fuse
• Voltage Rating: 250V AC
• Current Rating: 20A
• Dimensions: 1" L x 0.406" W x 0.406" H (25.4mm x 10.3mm x 10.3mm)
• Weight: 1.2 lb
• Diameter: 0.41" (10.4mm)
• Class Rating: Midget
• Barrels: 1
• AIC Rating: 10kA@125V
• Standards: UL/CSA recognized
• Applications: Industrial control circuits, machinery protection, electrical panels

Product Identification

• UPC: 78263452200
• GTIN: 00782634522003
