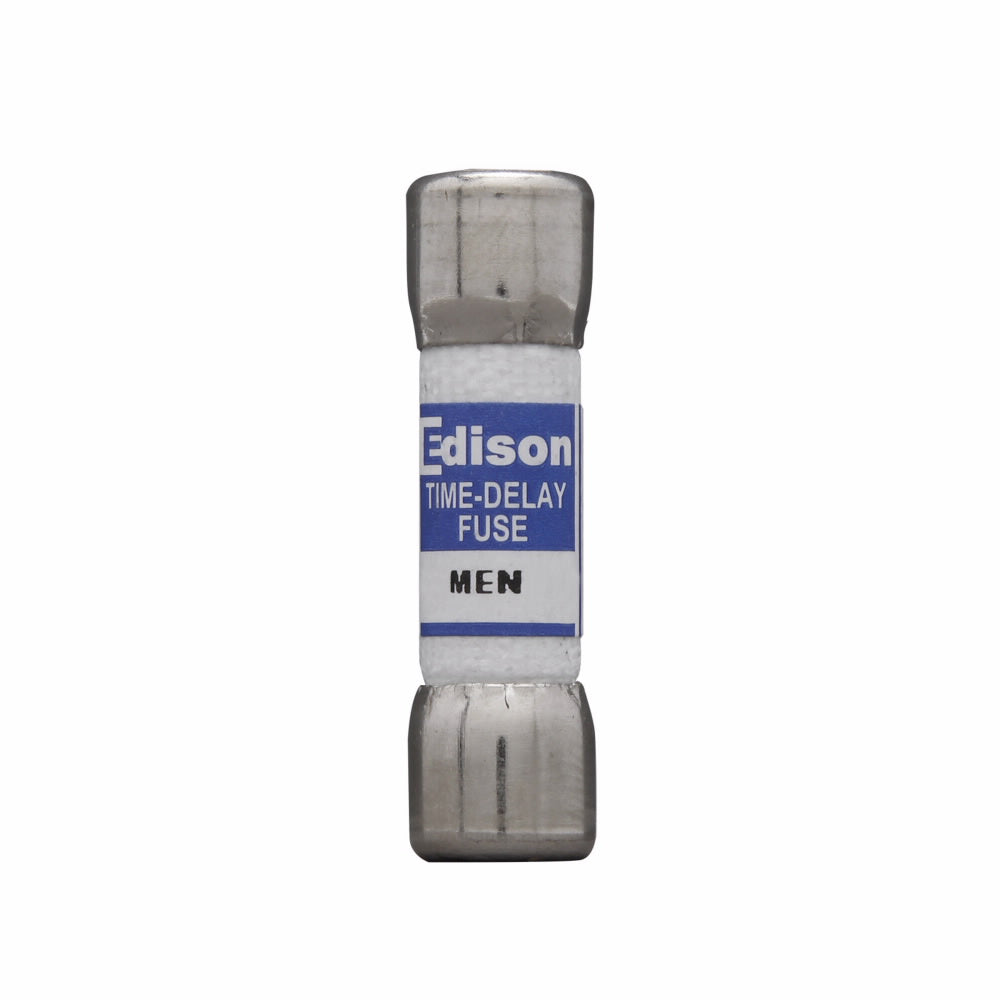

Edison Fuses MEN15 - Midget Fuse 15A (250V 10kA AIC)

Edison Fuses MEN15 is a midget low-voltage fuse designed for circuit protection in industrial and commercial applications. It features a 250V AC voltage rating and 15A current rating, with a compact 1" x 0.406" x 0.406" (25.4mm x 10.3mm x 10.3mm) ceramic body construction and 10kA interrupting capacity at 125V. This UL-recognized fuse meets industry standards for electrical safety and is commonly used in control panels, transformers, and power distribution systems requiring reliable overcurrent protection.

Key Features & Specifications

• Type: Midget time-delay ceramic fuse
• Voltage Rating: 250V AC
• Current Rating: 15A
• Dimensions: 1" L x 0.406" W x 0.406" H (25.4mm x 10.3mm x 10.3mm)
• Weight: 1.2 lb
• Diameter: 0.41" (10.4mm)
• Barrels: 1
• AIC Rating: 10kA@125V
• Class Rating: Midget
• Standards: UL Recognized
• Applications: Industrial control panels, power distribution, transformers

Product Identification

• UPC: 78263452150
• GTIN: 00782634521501
