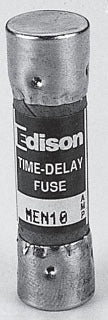

Edison Fuses MEN1.25 - Midget Fuse 1.25A (250V 10kA AIC)

Edison Fuses MEN1.25 is a low-voltage midget fuse designed for circuit protection in industrial and commercial applications. Rated for 250V AC/DC with a 1.25A current capacity, it features a compact 1" x 0.406" x 0.406" (LxWxH) ceramic body with a 0.41" diameter and 10kA interrupting capacity at 125V. Compliant with industry standards for midget fuses (Class Midget), this single-barrel fuse is engineered for reliable overcurrent protection in control circuits, instrumentation, and small power distribution systems.

Key Features & Specifications

• Type: Ceramic-body midget fuse (MEN series)
• Voltage Rating: 250V AC/DC
• Current Rating: 1.25A
• Dimensions: 1" L x 0.406" W x 0.406" H (25.4mm x 10.3mm x 10.3mm)
• Weight: 1.001 lb
• Diameter: 0.41" (10.4mm)
• Class Rating: Midget
• AIC Rating: 10kA@125V
• Barrels: 1
• Standards: Industrial fuse compliance (Class Midget)
• Applications: Control circuits, instrumentation, small power distribution

Product Identification

• UPC: 78263452012
• GTIN: 00782634520122
