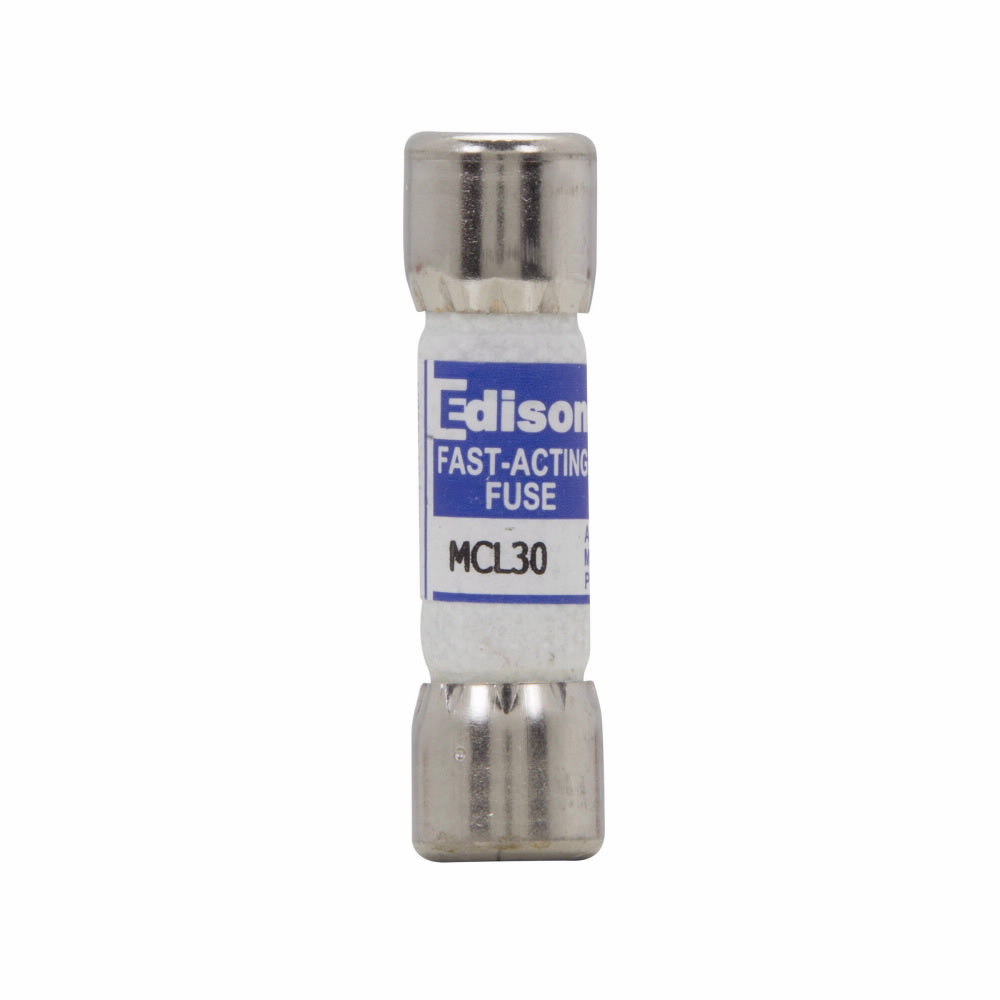

Cooper Bussmann MCL30 - Midget Fuse 30A (100kA@600V Interrupt Rating)
Regular price
$0.00
$0.00
Regular price
$29.38
$29.38
Sale price
$0.00
$0.00
Save $29.38
/
- In stock, ready to ship
- Backordered, shipping soon
Cooper Bussmann MCL30 is a midget fuse designed for circuit protection in low-voltage industrial applications. Rated for 600V AC/DC systems with a 30A current capacity, it features a compact cylindrical design measuring 1" x 0.406" x 0.406" (25.4mm x 10.3mm x 10.3mm) with a 100kA interrupting rating at 600V. UL-recognized and built to industry standards, this single-barrel fuse provides reliable overcurrent protection for motor control circuits, transformers, and power distribution equipment.
Key Features & Specifications
Key Features & Specifications
- Type: Midget fast-acting fuse with ceramic body and tin-plated end caps
- Voltage Rating: 600V AC/DC
- Current Rating: 30A
- Dimensions: 1" L x 0.406" W x 0.406" H (25.4mm x 10.3mm x 10.3mm)
- Standards: UL 248-14 recognized
- Applications: Motor controls, transformers, power distribution panels
- Class Rating: Midget
- AIC rating: 100kA@600V
- Barrels: 1
- Diameter: 0.41" (10.4mm)
- Weight: 1.02 lb
- UPC: 78263442030
- GTIN: 00782634420309
