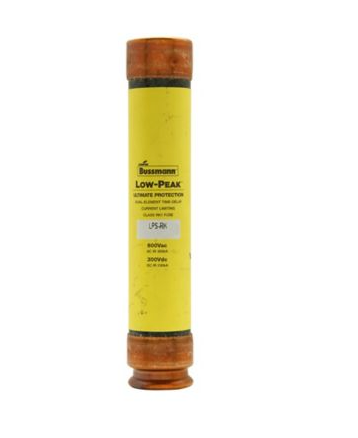

Bussmann LPS-RK-35 - Low-Peak Time-Delay Fuse 35A (300kA AIC @600V)

Bussmann LPS-RK-35 is a Low-Peak time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. It features a 600V AC voltage rating with a 35A current rating, providing reliable overload and short-circuit protection. The fuse construction includes a single-barrel design with a 0.81-inch diameter and weighs 5.19 lb, built to RK1 class specifications for current limitation. It meets industry standards with a 300,000A interrupting rating at 600V AC, ensuring compliance with rigorous safety requirements. Typical applications include motor branch circuits, transformers, and feeder circuits where time-delay characteristics and high interrupting capacity are essential.

Key Features & Specifications

• Type: Low-Peak time-delay current-limiting fuse, single barrel
• Voltage Rating: 600V AC
• Current Rating: 35A
• Dimensions: 0.81-inch diameter
• Standards: RK1 class rating
• Applications: Motor circuits, transformers, feeder protection
• AIC rating: 300kA@600V AC
• Class Rating: RK1
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 051712548373
