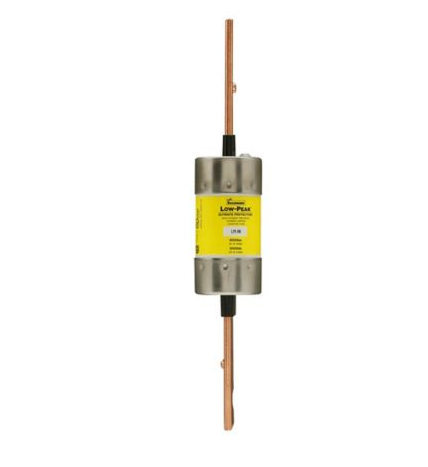

Bussmann LPS-RK-200 - Low-Peak Time-Delay Fuse 200A (300kA AIC @600V)

Bussmann LPS-RK-200 is a time-delay fuse designed for comprehensive circuit protection in industrial electrical systems. It features a 200A current rating and 600V AC voltage rating, providing reliable overload and short-circuit protection with a 300kA interrupting rating at 600V. The fuse construction includes a single-barrel design with 1.61-inch diameter and weighs 1 lb, featuring RK1 classification for time-delay characteristics. This fuse meets industry standards for low-voltage protection applications and is UL/CSA certified. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where coordinated protection is required.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, RK1 class, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 1.61-inch diameter
• Standards: UL/CSA certified
• Applications: Motor branch circuits, feeder circuits, industrial control panels
• AIC rating: 300kA@600V
• Class Rating: RK1
• Barrels: 1
• Weight: 1 lb
• Item Subcategory: Low Voltage
• Family: Low-Peak

Product Identification

• GTIN: 051712548502
