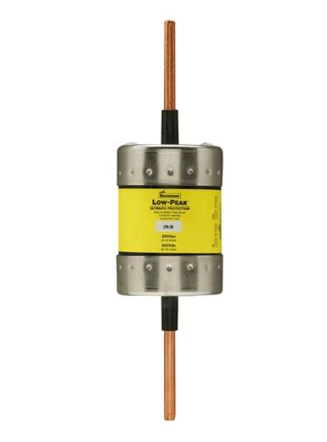

Cooper Bussmann LPN-RK-250 - Low-Peak Fuse 250A (300kA@250V Interrupt Rating)

Cooper Bussmann LPN-RK-250 is a Low-Peak RK1 class fuse designed for circuit protection in low-voltage applications. It features a 250V voltage rating and 250A current rating with a 300kA interrupting capacity at 250V, housed in a compact 2.36" diameter body with knife blade connections. The single-barrel construction meets industry standards for time-delay protection in demanding environments. Typical applications include industrial control panels, motor circuits, and power distribution systems where reliable overcurrent protection is critical.

Key Features & Specifications

• Type: LPN-RK time-delay fuse with current-limiting design
• Voltage Rating: 250V AC
• Current Rating: 250A
• Dimensions: 2.36" diameter
• Standards: UL/CSA recognized
• Applications: Industrial control panels, motor protection, power distribution
• Class Rating: RK1
• Connection: Knife blade
• Barrels: 1
• AIC rating: 300kA@250V
• Weight: 2 lb

Product Identification

• UPC: 051712538527
• GTIN: 00051712538527
