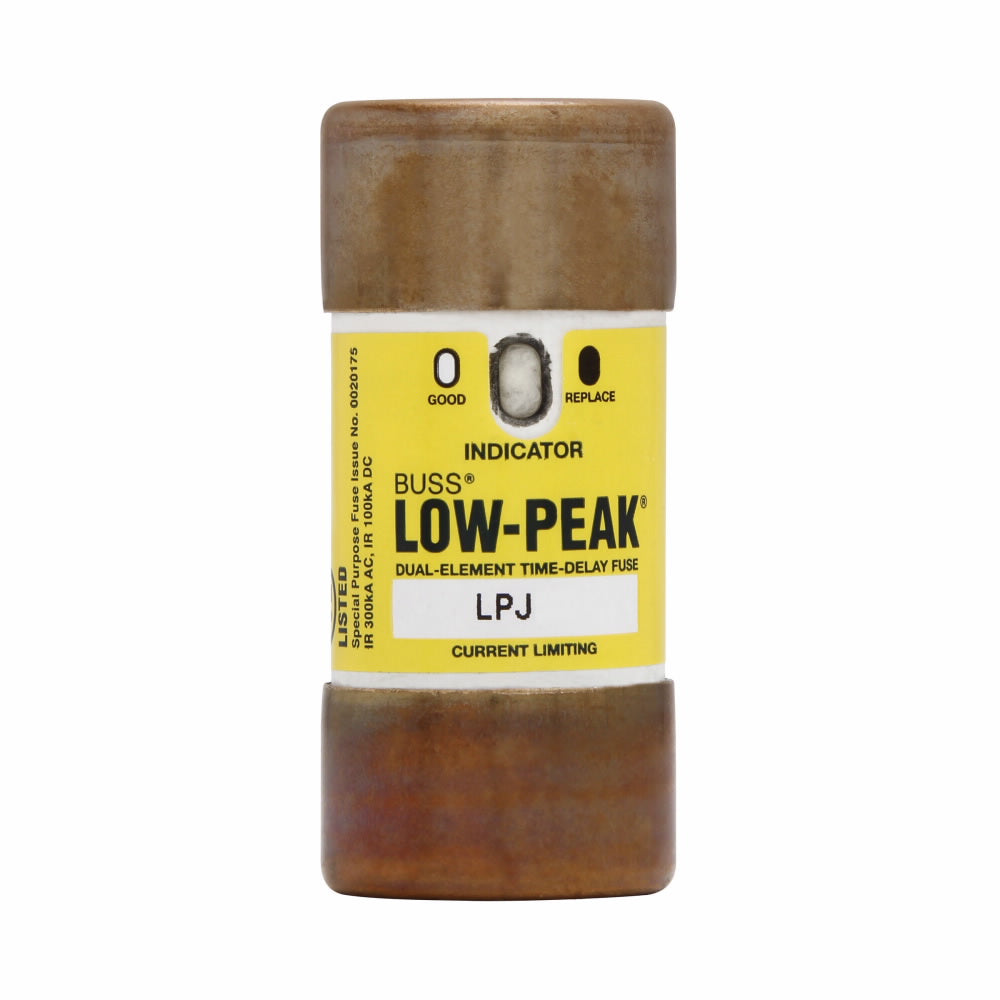

Bussmann LPJ-35SPI - Class J Time-Delay Fuse 35A (300kA AIC, 600V)

The Bussmann LPJ-35SPI is a Low-Peak time-delay fuse from Eaton's LPJ family, engineered to provide reliable branch circuit and feeder protection for electrical systems. It features a 35A current rating and a 600V AC voltage rating, with a high 300kA interrupting capacity at 600V to safely clear severe fault currents. The fuse is constructed as a single-barrel Class J device with a 1.06-inch diameter and a 2-3/8-inch length, weighing 1.18 lb, and is manufactured in Mexico. It complies with CE, UL-Special Purpose Guide JFHR, and CSA Class 1422-02 standards, ensuring performance and safety in demanding industrial environments. Typical applications include the protection of motors, transformers, and power distribution equipment where high interrupting ratings and time-delay characteristics are required to handle inrush currents.

Key Features & Specifications

• Type: Low-Peak Time-Delay Fuse, Class J, Single Barrel
• Voltage Rating: 600V AC
• Current Rating: 35A
• Dimensions: 2-3/8 in Length, 1.06 in Diameter
• Standards: CE, UL-Special Purpose Guide JFHR, CSA Class 1422-02
• Applications: Motor, Transformer, and Power Distribution Protection
• AIC rating: 300kA @ 600V
• Class Rating: J
• Barrels: 1
• Weight: 1.18 lb
• Family: Low-Peak
• Item Subcategory: Low Voltage Fuse
• Country of Origin: Mexico

Product Identification

• UPC: 051712626361
• GTIN: 00051712626361
