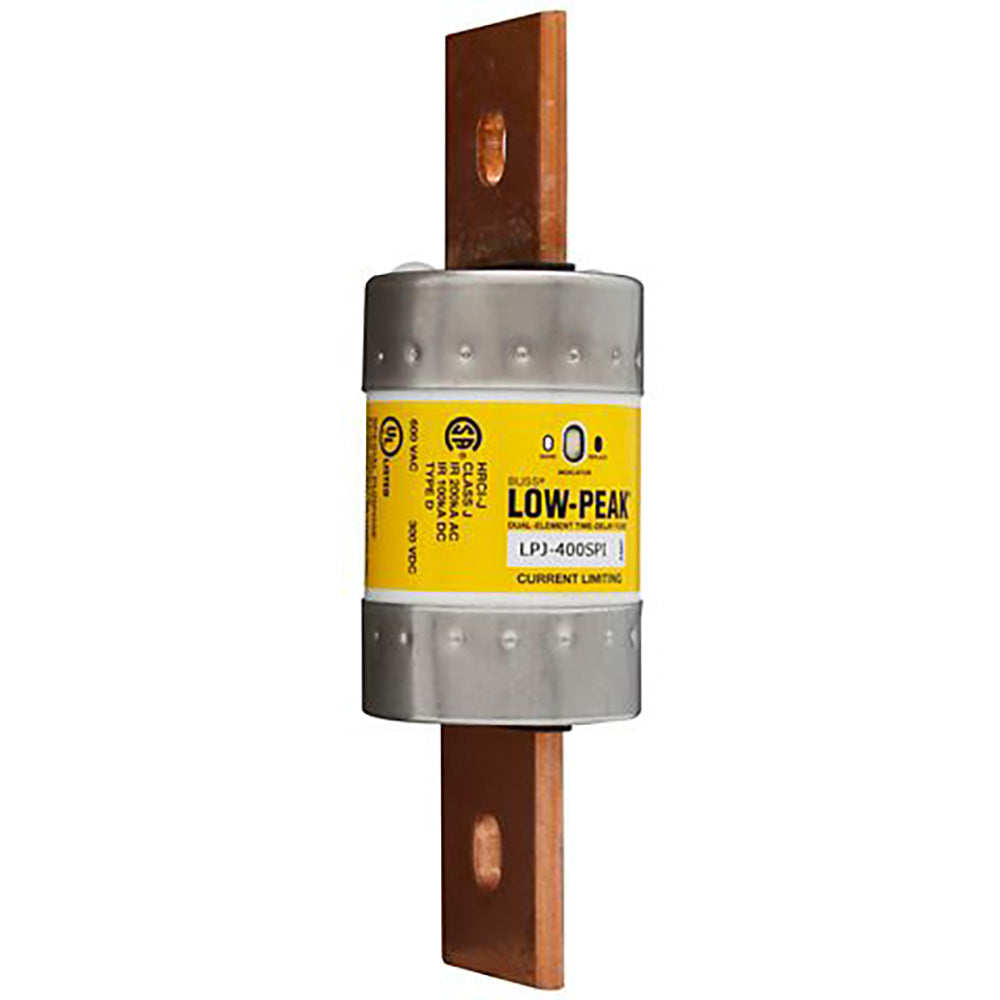

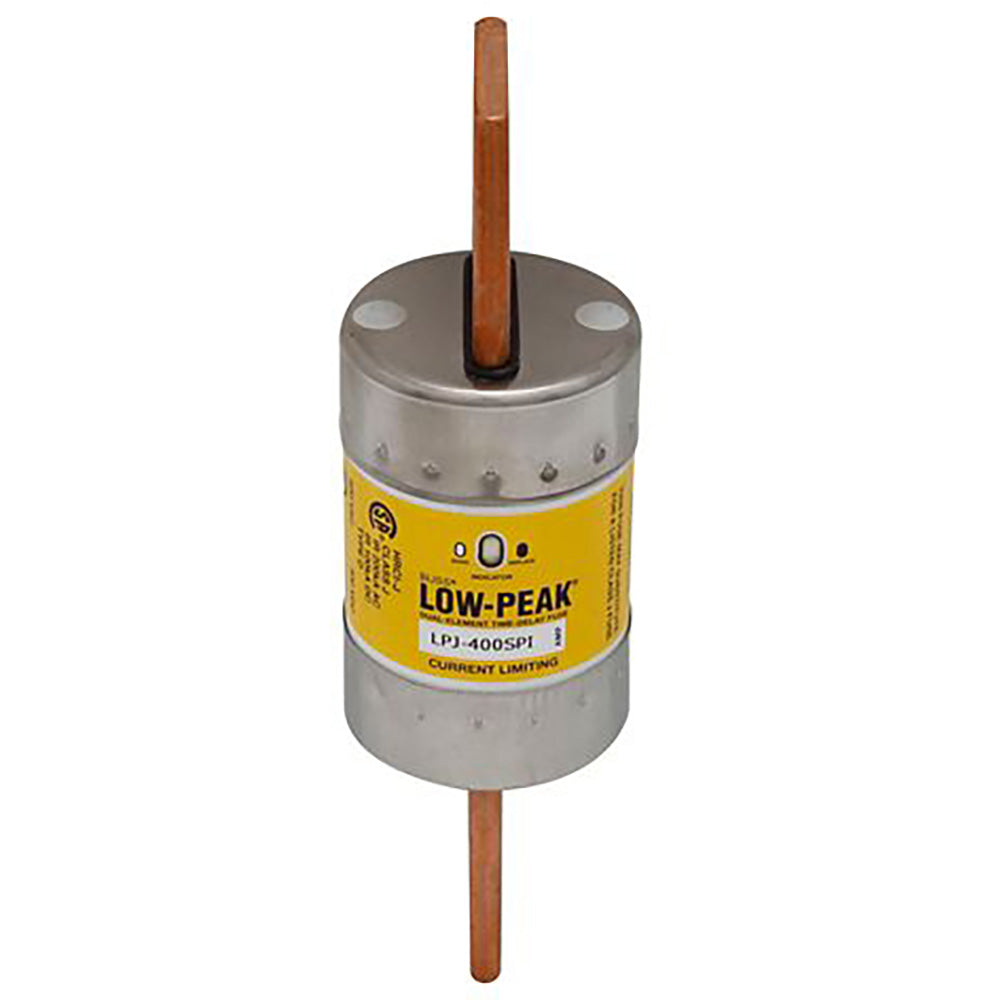

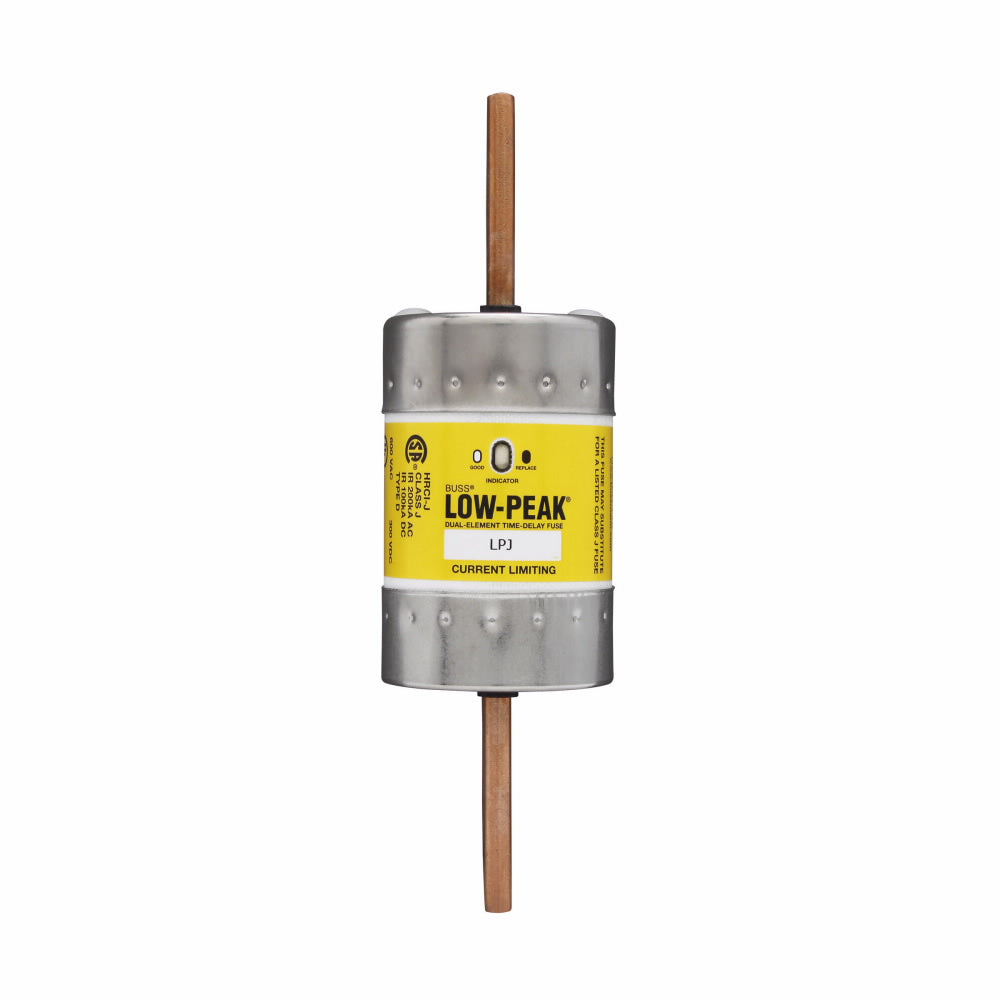

Eaton Bussmann LPJ-225SPI - Class J Time-Delay Fuse 225A (300kA AIC @600V)

Eaton Bussmann LPJ-225SPI is a Class J time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. It features a 600V AC voltage rating with a 225A current rating, providing reliable overcurrent protection while withstanding temporary inrush currents. The fuse measures 7-1/8 inches in length with a 2.11-inch diameter and utilizes a single-barrel construction weighing 2 lb. Certified to CE/UL-Special Purpose Guide JFHR and CSA Class 1422-02 standards, this fuse delivers 300kA interrupting capacity at 600V for robust fault protection. Typical applications include motor branch circuits, transformer protection, and industrial control panels where high interrupting capacity and time-delay characteristics are required.

Key Features & Specifications

• Type: Class J time-delay fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 225A
• Dimensions: 7-1/8 inches length, 2.11 inches diameter
• Standards: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
• Applications: Motor branch circuits, transformer protection, industrial control panels
• AIC rating: 300kA@600V
• Class Rating: J
• Barrels: 1
• Weight: 2 lb
• Family: Low-Peak
• Country of Origin: Mexico

Product Identification

• UPC: 051712626415
• GTIN: 00051712626415
