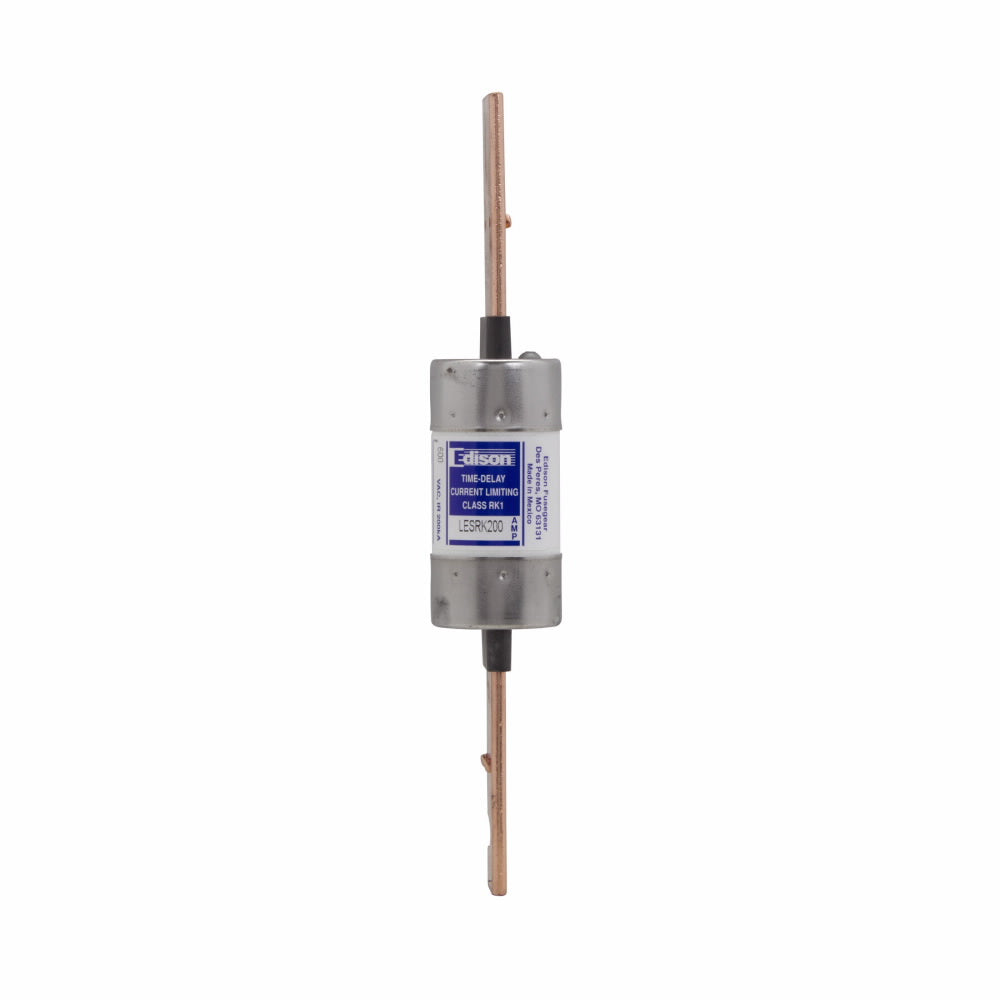

Edison Fuses LESRK200 - RK1 Fuse 200A (200kA@600V Interrupt Rating)

Edison Fuses LESRK200 is a low-voltage RK1-class fuse designed for high-current circuit protection in industrial electrical systems. It features a 600V AC rating with a 200A current capacity and a 200kA interrupting rating at 600V, housed in a durable cylindrical body measuring 9.63" in length and 1.61" in diameter. The single-barrel construction meets RK1 time-delay specifications, providing reliable overload and short-circuit protection while complying with industry standards for industrial power distribution. Typical applications include motor control centers, switchgear, and heavy machinery protection where high fault currents are present.

Key Features & Specifications

• Type: RK1 time-delay fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 9.63" L x 1.61" W x 1.61" H (244.5mm x 40.9mm x 40.9mm)
• Weight: 1 lb (0.45 kg)
• Diameter: 1.61" (40.9mm)
• AIC Rating: 200kA at 600V
• Class Rating: RK1
• Standards: UL/CSA recognized
• Applications: Industrial switchgear, motor protection, power distribution

Product Identification

• UPC: 782634548508
• GTIN: 00782634548508
