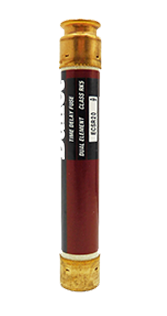

Edison Fuses LENRK80 - RK1 Class Fuse 80A@250V (200kA AIC)

Edison Fuses LENRK80 is a low-voltage RK1 class fuse designed for circuit protection in industrial electrical systems. It features a 250V AC voltage rating and 80A current rating with a compact plug-in design measuring 5.88in length and 1.1in diameter. The fuse meets RK1 standards with 200kA interrupting capacity at 250V, constructed for reliable performance in motor control centers, panelboards, and switchgear applications.

Key Features & Specifications

• Type: RK1 class low-voltage current-limiting fuse
• Voltage Rating: 250V AC
• Current Rating: 80A
• Dimensions: 5.88" L × 1.1" W × 1.1" H (149.4mm × 27.9mm × 27.9mm)
• Weight: 1.001 lb (454g)
• Standards: RK1 class compliant
• Applications: Motor protection, panelboards, switchgear
• AIC rating: 200kA@250V
• Connection: Plug-in
• Barrels: 1
• Diameter: 1.1" (27.9mm)

Product Identification

• UPC: 782634538431
