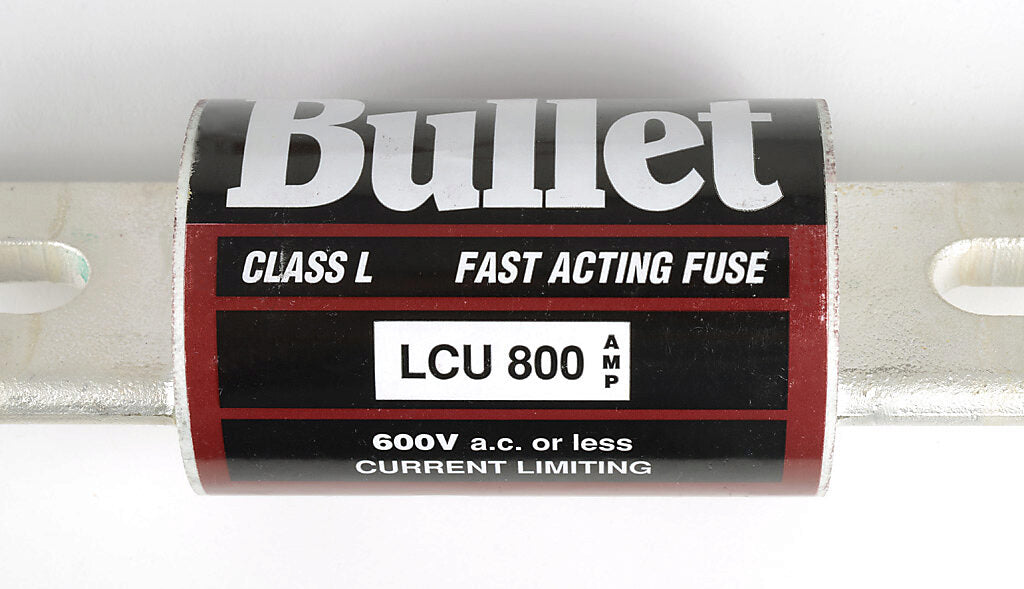

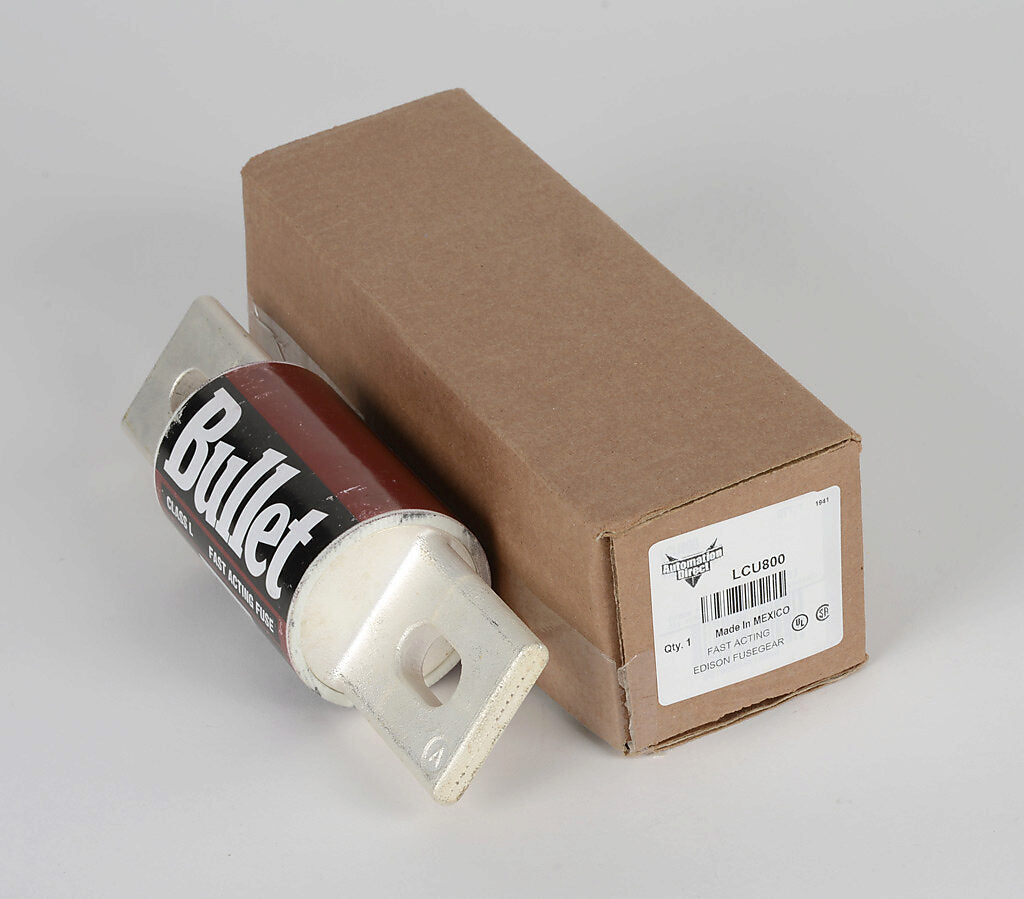

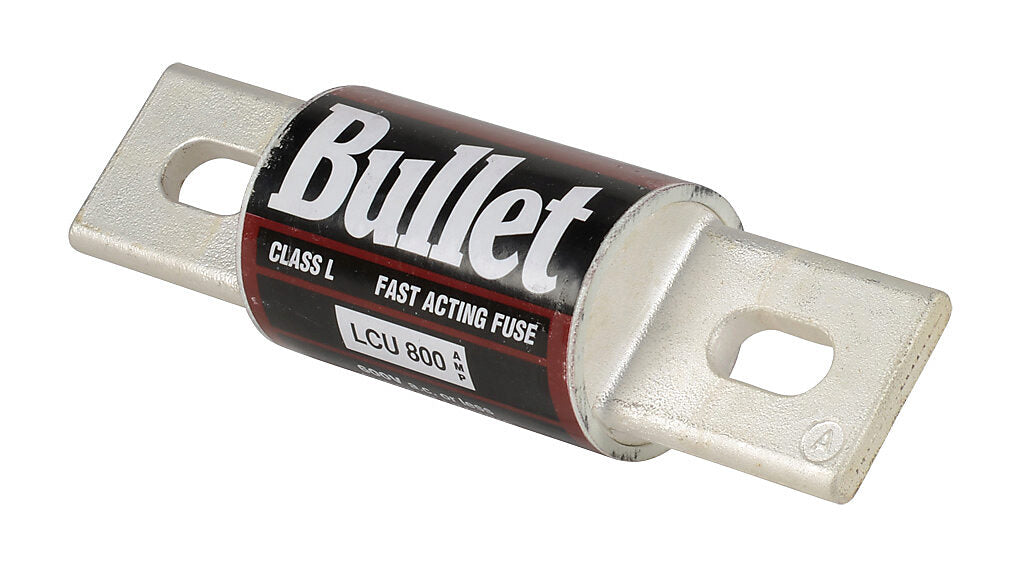

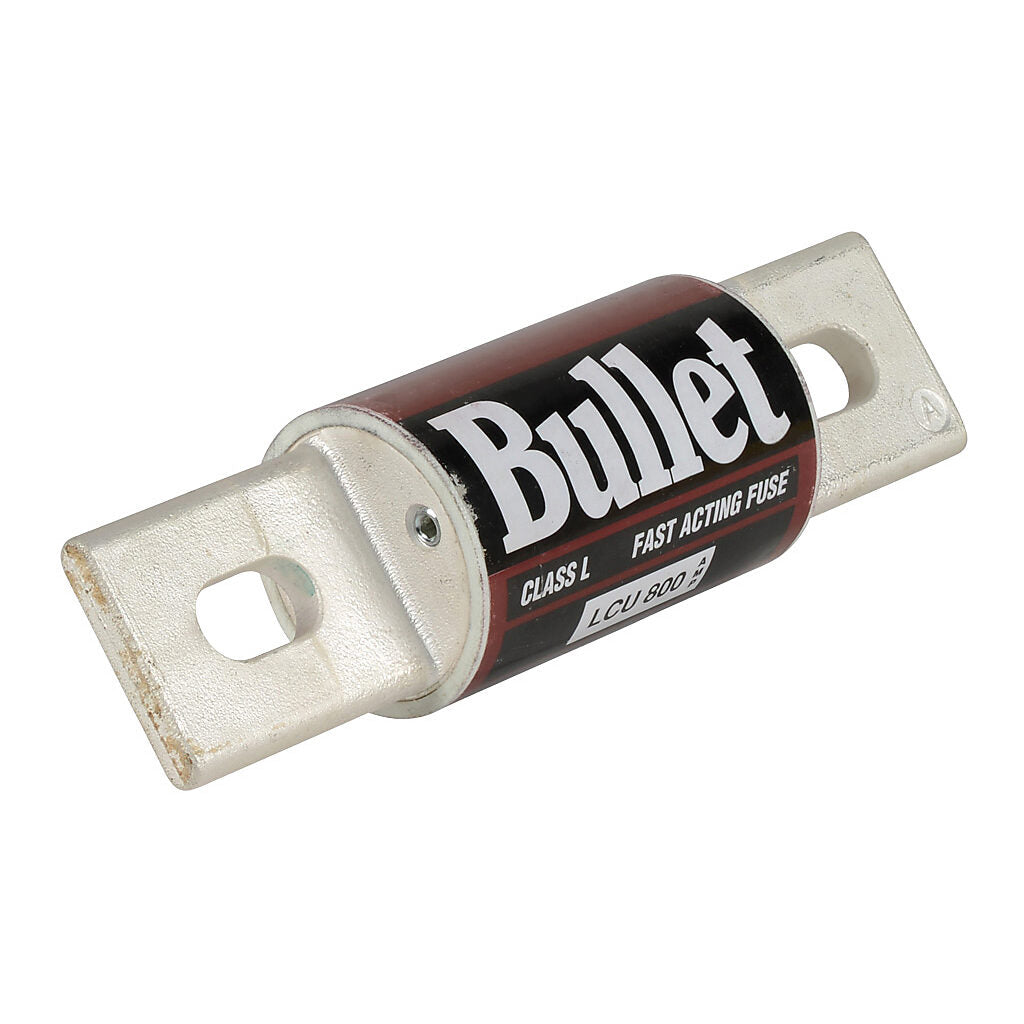

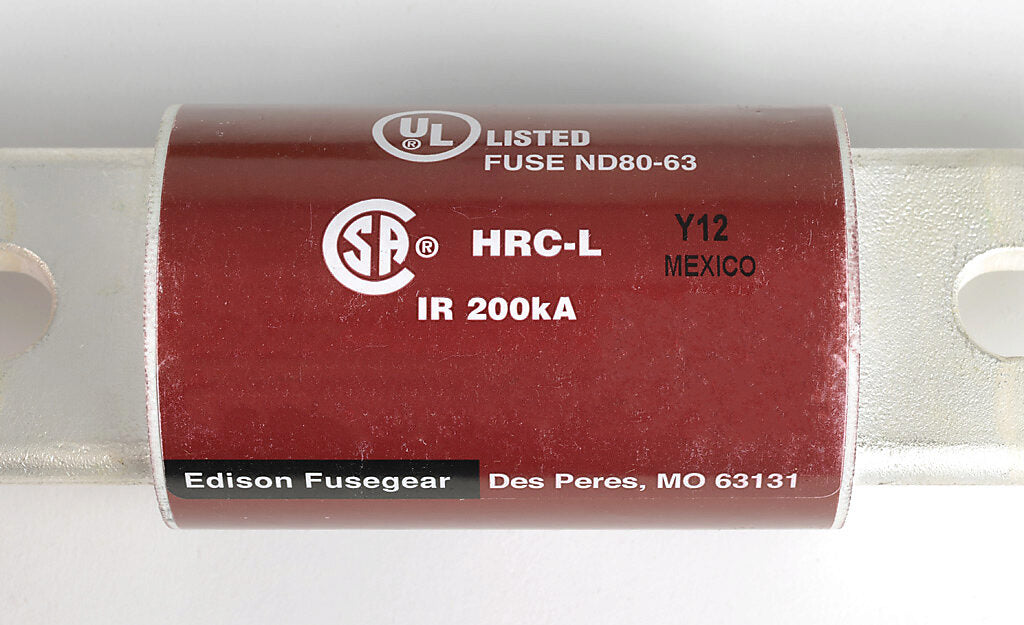

Bussmann LCU800 - Class L Fuse 800A 600V (200kA AIC Rating)

The Bussmann LCU800 is a Class L fuse designed for high-current circuit protection in industrial power distribution systems. It features a 600V AC voltage rating with an 800A current rating, providing reliable overcurrent protection for heavy-duty applications. Constructed as a single-barrel fuse with a 2.5-inch diameter and weighing 3 lb, this robust device offers 200kA interrupting capacity at 600V for superior fault current protection. The LCU Series fuse meets industry standards for low-voltage protection applications and is commonly deployed in industrial control panels, motor control centers, and main service entrance equipment where high interrupting capacity is required.

Key Features & Specifications

• Type: Class L current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 800A
• Dimensions: 2.5-inch diameter
• Standards: Industrial low voltage protection standards
• Applications: Industrial power distribution, motor control centers, main service equipment
• AIC rating: 200kA@600V
• Class Rating: L
• Barrels: 1
• Weight: 3 lb
• Family: LCU Series
• Item Subcategory: Low Voltage
