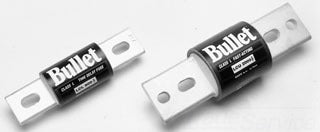

Edison Fuses LCL801 - Class L Current-Limiting Fuse 801A 600V (200kA AIC)

Edison Fuses LCL801 is a low-voltage current-limiting fuse designed for high-capacity circuit protection in industrial power distribution systems. This Class L fuse features a 600V AC rating with a 801A current capacity and 200kA interrupting rating at 600V, housed in a compact 2.5-inch diameter barrel construction weighing 3 lb. The fuse meets industry standards for current-limiting protection with its silver-sand construction that rapidly interrupts fault currents. Typical applications include service entrance equipment, motor control centers, and switchgear protection where high interrupting capacity is required.

Key Features & Specifications

• Type: Class L current-limiting fuse with silver-sand element
• Voltage Rating: 600V AC
• Current Rating: 801A
• Dimensions: 2.5" diameter x 0.001" L x 0.001" W x 0.001" H
• Standards: UL/CSA listed
• Applications: Industrial power distribution, switchgear, MCCs
• AIC rating: 200kA@600V
• Barrels: 1
• Class Rating: L
• Weight: 3 lb

Product Identification

• UPC: 78263460509
• GTIN: 00782634605096
