Edison Fuses LCL800 - Class L Fuse 800A (200kA@600V Interrupt Rating)
Regular price
$2,761.46
$2,761.46
Regular price
$2,665.91
$2,665.91
Sale price
$2,761.46
$2,761.46
Save $-95.55
/
- In stock, ready to ship
- Backordered, shipping soon

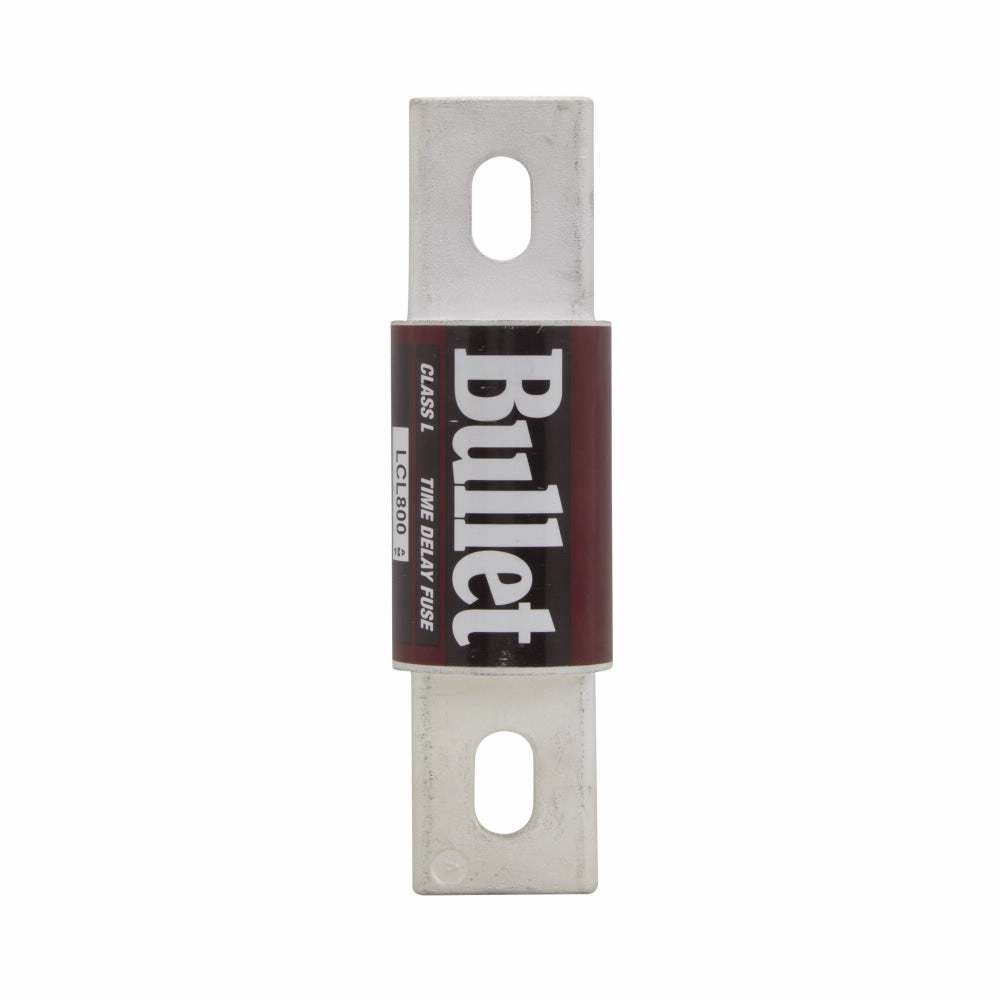

Edison Fuses LCL800 is a Class L low-voltage fuse designed for high-current circuit protection in industrial power distribution systems. It features a 600V AC rating with an 800A current capacity and 200kA interrupting rating at 600V for reliable fault protection. The fuse measures 8.63" x 2.39" x 2.39" (LxWxH) with a 2.5" diameter barrel construction, weighing 3 lb for robust mechanical durability. CSA, UL, and RoHS certifications ensure compliance with North American safety and environmental standards, making it suitable for motor control centers, service entrance equipment, and industrial switchgear applications.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Class L time-delay fuse with single barrel design
- Voltage Rating: 600V AC
- Current Rating: 800A
- Dimensions: 8.63" L x 2.39" W x 2.39" H
- Standards: CSA Certified, UL Listed, RoHS Compliant
- Applications: Industrial power distribution, motor protection, switchgear
- AIC rating: 200kA@600V
- Diameter: 2.5"
- Weight: 3 lb
- Class Rating: L
- Barrels: 1
Product Identification
- UPC: 782634605089
- GTIN: 00782635000000
