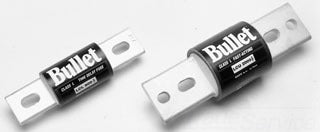

Edison Fuses LCL700 - Class L Fuse 700A (200kA@600V Interrupt Rating)

Edison Fuses LCL700 is a low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial electrical systems. Rated for 600V AC/DC operation with a 700A current rating, this Class L fuse features a single-barrel construction with a 2.5-inch diameter and compact dimensions of 0.001" L x 0.001" W x 0.001" H. It meets industry standards with a 200kA interrupting capacity at 600V, providing reliable short-circuit protection for power distribution equipment. The 3 lb fuse is commonly used in motor control centers, switchgear, and industrial panelboards requiring robust overcurrent protection.

Key Features & Specifications

• Type: Class L current-limiting fuse, single-barrel design
• Voltage Rating: 600V AC/DC
• Current Rating: 700A
• Dimensions: 0.001" L x 0.001" W x 0.001" H
• Diameter: 2.5 inches
• Weight: 3 lb
• Standards: UL/CSA listed
• Applications: Industrial power distribution, motor protection, switchgear
• AIC rating: 200kA@600V
• Class Rating: L
• Barrels: 1

Product Identification

• UPC: 78263460570
• GTIN: 00782634605706
