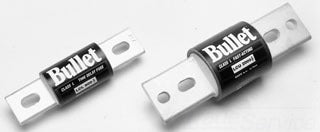

Edison Fuses LCL500 - Class L Current-Limiting Fuse 500A (200kA@600V Interrupting Capacity)

Edison Fuses LCL500 is a low-voltage current-limiting fuse designed for high-interrupting capacity circuit protection in industrial electrical systems. Rated for 600V AC/DC operation with a 500A current rating, this Class L fuse features a single-barrel construction with a 2.5-inch diameter and compact dimensions of 0.001" L x 0.001" W x 0.001" H. The fuse meets industry standards for 200kA interrupting capacity at 600V, providing reliable short-circuit protection in demanding applications such as motor control centers, switchgear, and power distribution panels.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse, Class L rating
• Voltage Rating: 600V AC/DC
• Current Rating: 500A
• Dimensions: 0.001" L x 0.001" W x 0.001" H
• Weight: 3 lb
• Diameter: 2.5 inches
• Barrels: 1
• AIC Rating: 200kA@600V
• Standards: UL/CSA compliant
• Applications: Motor control centers, switchgear, industrial power distribution

Product Identification

• UPC: 78263460766
• GTIN: 00782634607663
