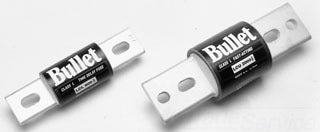

Edison Fuses LCL2500 - Class L Fuse 2500A (200kA@600V Interrupt Rating)

Edison Fuses LCL2500 is a low-voltage Class L fuse designed for high-current circuit protection in industrial power distribution systems. Rated for 600V AC/DC operation with a 2500A current capacity, this single-barrel fuse features a 200kA interrupting rating at 600V for reliable fault protection. The robust construction measures 10.75" x 5.03" x 5.03" (LxWxH) with a 5" diameter, weighing 8 lb for durable panel mounting. Compliant with industry standards for Class L fuses, it provides critical protection for motor control centers, service entrances, and industrial switchgear applications.

Key Features & Specifications

• Type: Class L current-limiting fuse with single barrel design
• Voltage Rating: 600V AC/DC
• Current Rating: 2500A
• Dimensions: 10.75" L x 5.03" W x 5.03" H
• Standards: Class L fuse compliance
• Applications: Industrial power distribution, motor control centers
• AIC rating: 200kA@600V
• Diameter: 5 inches
• Weight: 8 lb
• Barrels: 1
• Class Rating: L

Product Identification

• UPC: 782634605256
• GTIN: 00782634605256
