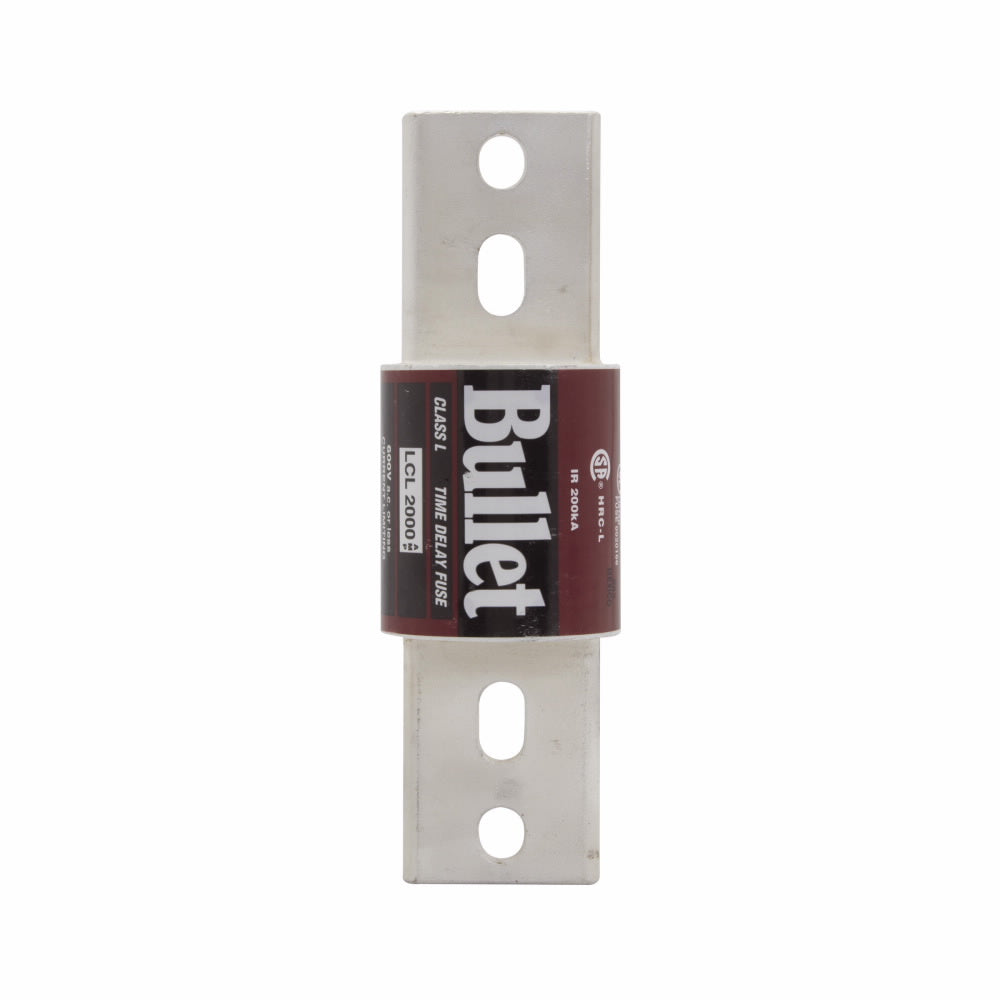

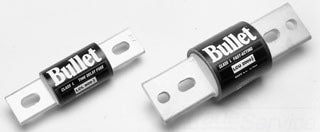

Edison Fuses LCL2000 - Class L Fuse 2000A (200kA@600V Interrupting Capacity)

Edison Fuses LCL2000 is a Class L low-voltage fuse designed for high-current circuit protection in industrial power distribution systems. It features a 600V AC rating with a 2000A current capacity and 200kA interrupting rating at 600V for reliable fault protection. The fuse has a robust cylindrical construction with a 3.5-inch diameter and measures 10.75 x 3.53 x 3.53 inches (LxWxH), weighing 8 lb for durable installation. Compliant with industry standards for Class L fuses, it is engineered for use in switchgear, motor control centers, and service entrance equipment requiring high interrupting capacity.

Key Features & Specifications

• Type: Class L low-voltage current-limiting fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 2000A
• Dimensions: 10.75" L x 3.53" W x 3.53" H
• Weight: 8 lb
• Diameter: 3.5 inches
• AIC Rating: 200kA @ 600V
• Standards: Meets Class L fuse requirements
• Applications: Industrial power distribution, switchgear, motor control centers

Product Identification

• UPC: 78263460520
• GTIN: 00782634605201
