Edison Fuses LCL1500 - Class L Fuse 1500A (200kA AIC @600V)

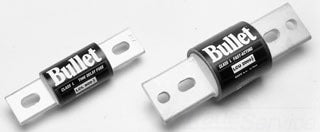

Edison Fuses LCL1500 is a low-voltage fuse designed for high-current circuit protection in industrial power distribution systems. Rated for 600V AC/DC operation with a 1500A current capacity, this Class L fuse features a rugged cylindrical design measuring 10.75" in length and 3.03" in diameter, constructed for 200kA interrupting capacity at rated voltage. Compliant with industry standards for low-voltage protection devices, it is engineered for demanding applications including motor control centers, service entrance equipment, and industrial switchgear where reliable short-circuit protection is critical.

Key Features & Specifications

• Type: Class L low-voltage current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 1500A
• Dimensions: 10.75"L x 3.03"W x 3.03"H
• Weight: 6 lb
• Diameter: 3"
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, switchgear, motor protection
• AIC rating: 200kA@600V
• Class Rating: L

Product Identification

• UPC: 78263460515
• GTIN: 00782634605157
