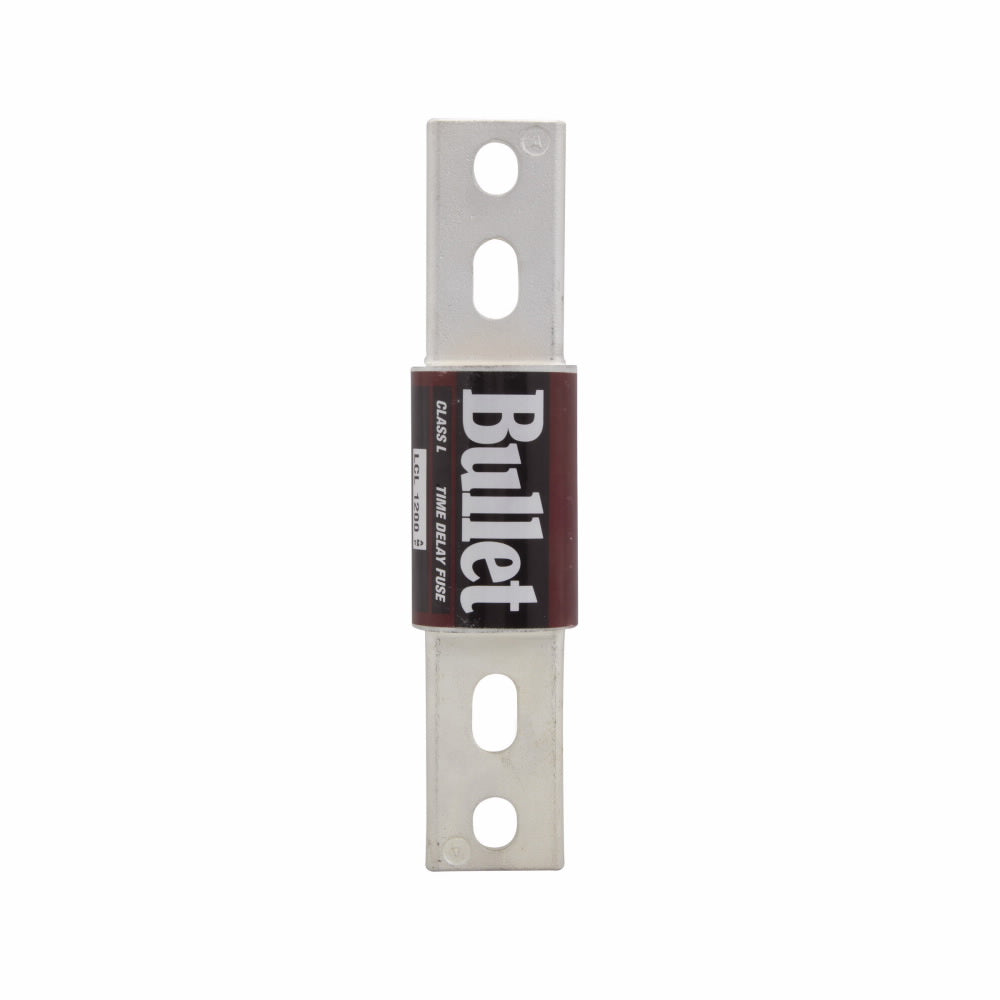

Edison Fuses LCL1200 - Class L Fuse 1200A (200kA@600V Interrupting Capacity)

Edison Fuses LCL1200 is a Class L low-voltage fuse designed for high-current circuit protection in industrial power distribution systems. It features a 600V AC rating with a 1200A current capacity and 200kA interrupting rating at 600V for reliable fault protection. The fuse measures 10.75" x 2.78" x 2.78" (LxHxW) with a 2.5" diameter barrel construction and weighs 4 lb, built for durable panel mounting. Compliant with industry standards for Class L fuses, it is engineered for use in switchgear, motor control centers, and other heavy-duty electrical applications requiring high interrupting capacity.

Key Features & Specifications

• Type: Class L time-delay fuse with single barrel design
• Voltage Rating: 600V AC
• Current Rating: 1200A
• Dimensions: 10.75" L x 2.78" H x 2.78" W
• Standards: Meets Class L fuse requirements
• Applications: Industrial power distribution, switchgear, MCCs
• Weight: 4 lb
• Diameter: 2.5"
• Barrels: 1
• AIC rating: 200kA@600V

Product Identification

• UPC: 78263460512
• GTIN: 00782634605126
