Edison Fuses LCL1000 - Class L Fuse 1000A (200kA@600V Interrupt Rating)
Regular price
$1,362.72
$1,362.72
Regular price
$1,689.16
$1,689.16
Sale price
$1,362.72
$1,362.72
Save $326.44
/
- In stock, ready to ship
- Backordered, shipping soon

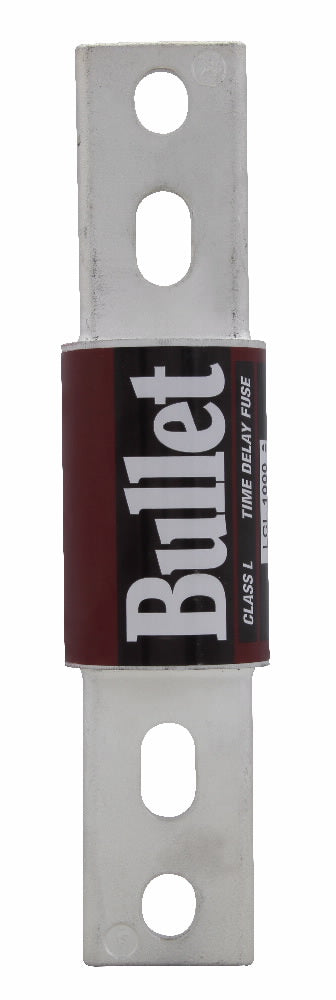

Edison Fuses LCL1000 is a Class L low-voltage fuse designed for high-current circuit protection in industrial applications. Rated for 600V AC/DC systems with a 1000A current capacity, it features a durable single-barrel construction with 200kA interrupting capacity at rated voltage. The fuse measures 10.75" x 2.78" x 2.78" (LxWxH) with a 2.5" diameter and 4 lb weight, meeting Class L standards for reliable performance in demanding environments. Its robust design makes it suitable for switchgear, motor control centers, and industrial power distribution systems requiring high fault current protection.
Key Features & Specifications
Key Features & Specifications
- Type: Class L low-voltage current-limiting fuse
- Voltage Rating: 600V AC/DC
- Current Rating: 1000A
- Dimensions: 10.75" L x 2.78" W x 2.78" H
- Standards: Class L fuse compliance
- Applications: Industrial power distribution, switchgear, MCCs
- AIC rating: 200kA@600V
- Diameter: 2.5 inches
- Weight: 4 lb
- Barrels: 1
- Family: LCL Series
- UPC: 078263460510
- GTIN: 00782634605102
