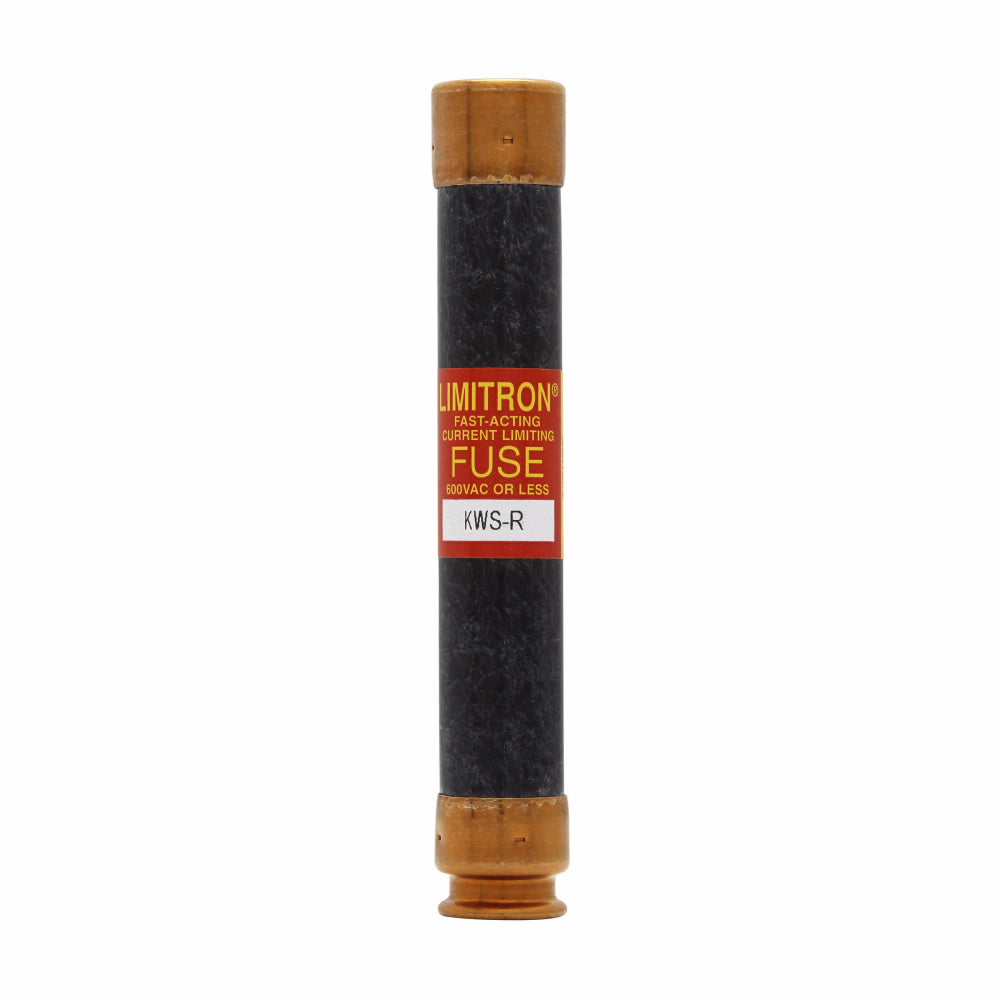

Bussmann KWS-R-15 - RK1 Current-Limiting Fuse 15A 600V (200kA AIC)

Bussmann KWS-R-15 is a current-limiting, fast-acting RK1 fuse designed for robust circuit protection in industrial electrical systems. It features a 600V AC voltage rating with a 15A current rating and provides 200,000 amperes interrupting capacity at 600V AC for reliable short-circuit protection. The fuse construction utilizes a single-barrel design with compact dimensions of 5 inches in length and 0.81-inch diameter, weighing 1 pound for straightforward installation. Manufactured to meet industry standards for current-limiting fuses, this LIMITRON series component is commonly deployed in motor branch circuits, feeder circuits, and industrial control panels where high fault current interruption is critical.

Key Features & Specifications

• Type: Current-limiting fast-acting RK1 fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 15A
• Dimensions: 5" length × 0.81" height × 0.81" width (12.7 cm × 2.06 cm × 2.06 cm)
• Diameter: 0.81 inches (2.06 cm)
• Weight: 1 lb (0.45 kg)
• Class Rating: RK1
• AIC Rating: 200kA @ 600V AC
• Barrels: 1
• Family: LIMITRON
• Item Subcategory: Low Voltage Fuse
• Country of Origin: Mexico

Product Identification

• UPC: 051712658775
• GTIN: 00051712658775
