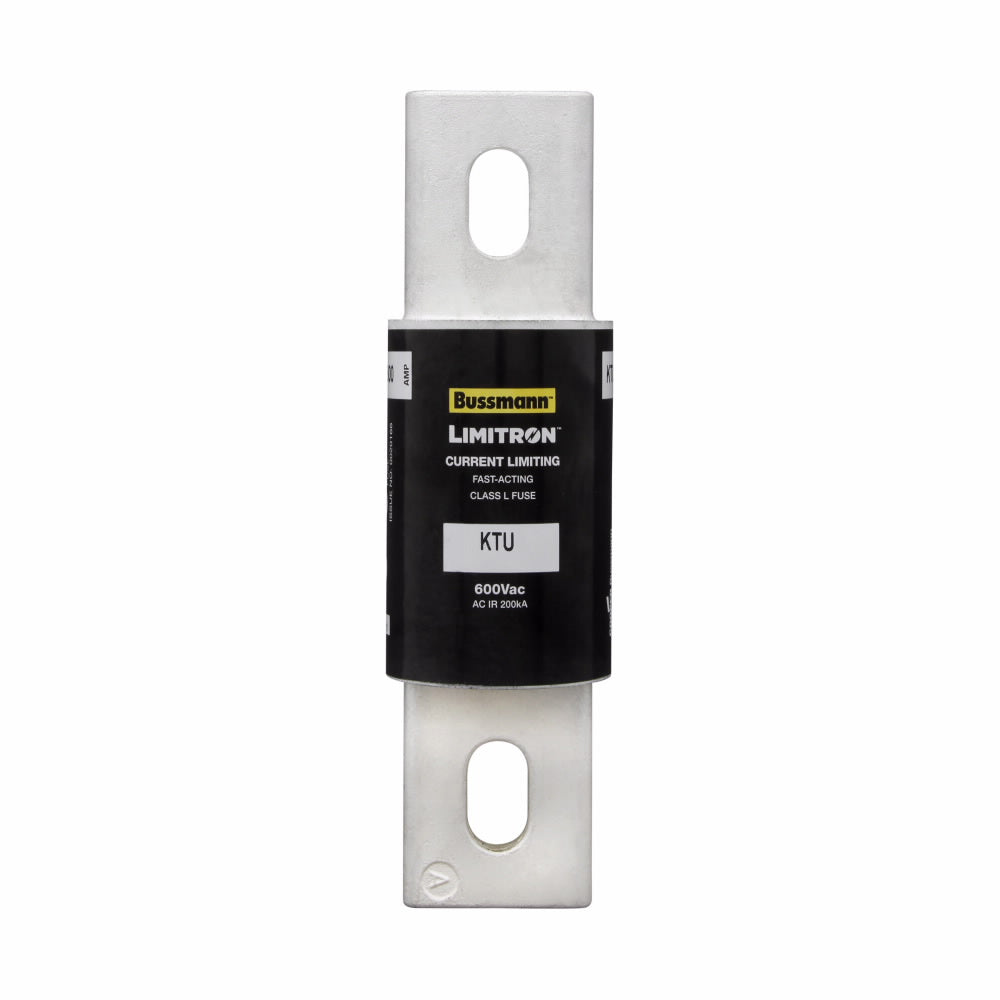

Bussmann KTU-600 - Class L Fuse 600A (200kA AIC @600V)

Bussmann KTU-600 is a LIMITRON series low-voltage fuse designed for high-current circuit protection in industrial applications. This 600VAC/VDC-rated fuse features a 600A current rating with a 200kA interrupting capacity at 600V, housed in a durable bolt-in configuration with a 2.4-inch diameter and Class L construction. The unit meets UL, CSA, and CE standards for safety and performance, with compact dimensions of 8.63"L x 2.5"W x 2.5"H and a weight of 5 lb. Typical applications include motor control centers, switchgear, and power distribution systems requiring reliable short-circuit protection.

Key Features & Specifications

• Type: KTU Class L time-delay fuse with single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 600A
• Dimensions: 8.63"L x 2.5"W x 2.5"H (219mm x 63.5mm x 63.5mm)
• Standards: UL Listed, CSA Certified, CE Compliant
• Applications: Industrial power distribution, motor protection, switchgear
• AIC rating: 200kA@600V
• Connection: Bolt-in terminal
• Weight: 5 lb (2.27 kg)
• Diameter: 2.4" (61mm)
• Class Rating: L
• Barrels: 1

Product Identification

• UPC: 051712613057
• GTIN: 00051712613057
