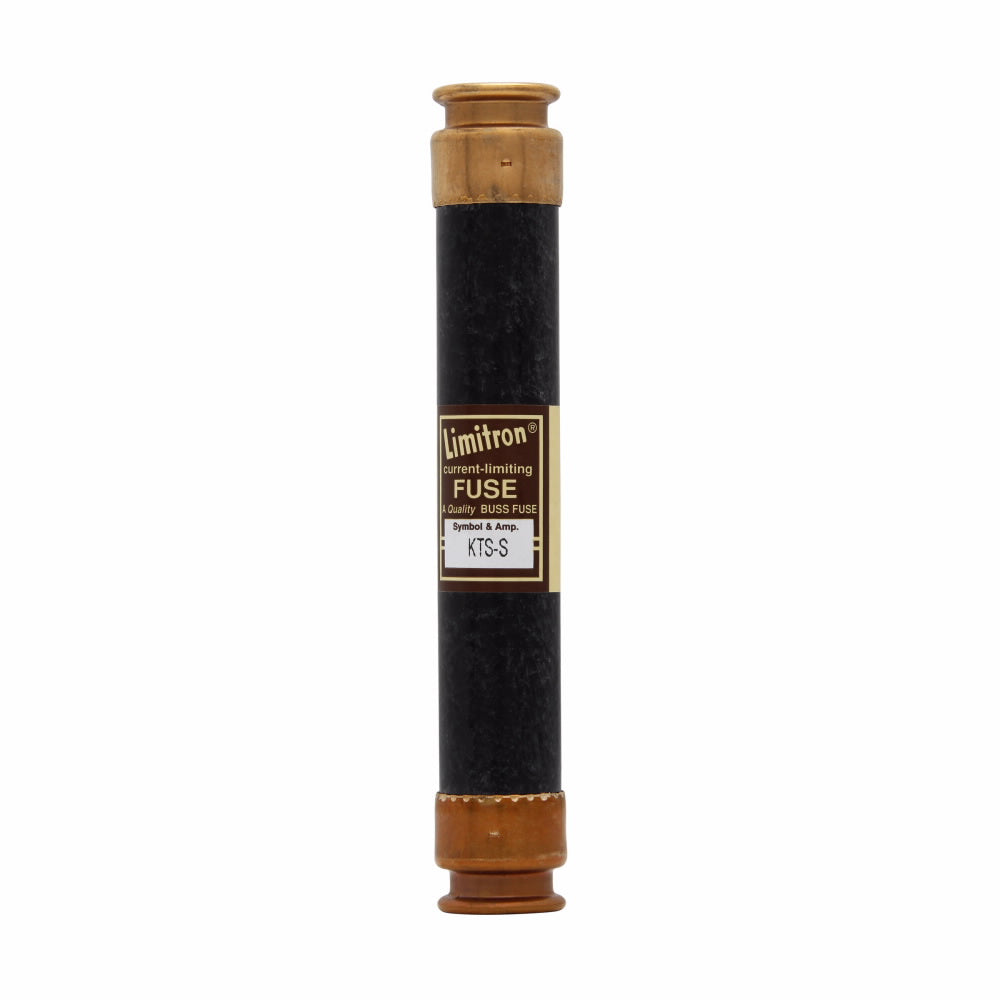

Cooper Bussmann KTS-S-6 - RK1 Fuse 6A 600V (200kA AIC)

Cooper Bussmann KTS-S-6 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK1-class fuse features a 600V AC rating with a 200kA interrupting capacity at 600V, housed in a compact ferrule-style construction measuring 5 inches in length and 0.81 inches in diameter. The fuse meets industry standards for current-limiting protection with its single-barrel design and 1.13 lb weight, making it suitable for motor branch circuits, transformers, and feeder protection applications where high fault current interruption is required.

Key Features & Specifications

• Type: Current-limiting fuse (RK1 class)
• Voltage Rating: 600V AC
• Current Rating: 6A
• Dimensions: 5" L × 0.82" W × 0.82" H
• Weight: 1.13 lb
• Diameter: 0.81"
• Connection: Ferrule
• Barrels: 1
• AIC Rating: 200kA @ 600V
• Standards: UL/CSA Listed
• Applications: Motor circuits, transformers, feeders

Product Identification

• UPC: 05171241606
• GTIN: 00051712416061
